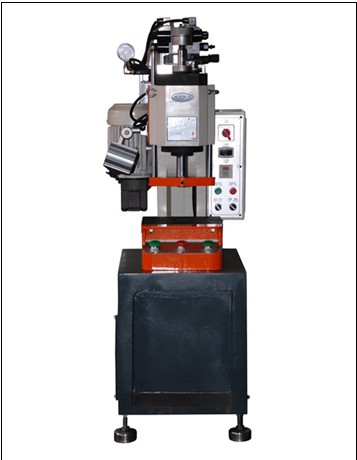

Single Action Hydraulic Stamping Press - Fby-c Series

Single column hydraulic machine
Product feature:
1.The C-body design, use small space and easy to operate.
2. Whole body cast, rigid and stable performance.
3. Rod mechanical limit, under pressure stroke adjustable , positioning accuracy 0.02mm.
4. Key and Foot Switch two cycle start modes.
5. Downward movement with the fast and feeding speed;the fast forward improve work efficiency�feeding speeds can be adjusted to protect the mold,improve product quality.
6.Safety designed, using both hands to operate, with emergency stop and jog up and down function.
7. Widely used in parts of the press forming, stretching, bending, punching, stamping, shaft alignment and press-fit.etc.
8. Infrared protection can be configured (Optional).
All kinds of the machine can be designed for the customer special request.
Technical Parameters
Specifications
Theoretical output pressure 10KN(1t)
Rated oil pressure 8Mpa
Max stroke 125mm
Throat Depth 200mm
Max Opening Height 140mm
Fast-forward speed 100mm/s
Feeding speed 10~100mm/s
Return speed 110mm/s
The size of the working table 290 X 235mm
The height of the working table 720mm
Size of the mold mounting hole Φ22mm
Power of motor 1.5kw
Power(3ΦAC,50Hz)380V
Weight 350kg.
