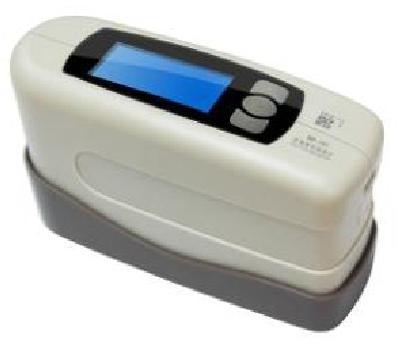

Rectangular Aluminium Single Angle Gloss Meter, For Industrial, Feature : Durable

Single-angle gloss-meter is widely used in decorative materials, such as marple,  granite, polishing brick, ceramic, and mold industries. All kinds of coating and surfaces, such as paints, varnishes, printing, ink, automaker, leather craft, woodenware, plastic, paper, etc.

Instrument has the main functions below:

1.One key to get loss values in a measurement. The incident angle of light conforms to ISO2813.

2.Humanism design, friendly graphical user interface.

3.1000 test records storge, data storage structure:100 samples and it can save 100group data for each sample.

4.Data browsing function.

5.Signs for low battery and full memory.

6.USB communication and Bluetooth communication function.

7.SD card storage function.

8.It can print the result by connecting with micro printer.

9.PC data analysis and management software.

Accessory list:

1. Power supply: Instrument needs only 5V power supply. No-load voltage is5.3V.

2. Holder with Calibration Board.

3. USB cable.

4. CD: It contains the PC software  and the instruction manual.

Optional accessory:

1.SD card: SD card is provided as an optional accessory.

2.Micro printer: Print the test result.

Technical Specifications:

Model HP-300

Specifications Unit Single-angle gloss-meter

Measuring angle Angle 60°

Measuring Range GU Gs(60°):0~1000

Measuring Spot mm Gs(60°):9x15

Resolution GU 0-100:0.1, 100-1000:1

Repeatability GU 0-100:0.2>0100:0.2%

Deviation GU 0-100:+/-1.5>100:+/-1.5%

Zero-point Deviation GU 0.2

Operating temperature °C 10°-40°

Storage Temperature °C -10°-70°

Relative Humidity Up to85%,no moisture condensation

Power Supply Four AAA-sized alkaline cell. USB/DC Adapter

Volume mm 163.8x58.1x88.3

Weight g 520
