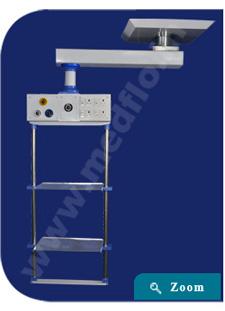

Single Arm Pendant Horizontal

Specification:
One arm Surgery Pendant for Operating Theatres.
Medflo provides the range of quality ceiling pendants for
   anesthetic, surgery and monitoring purpose in Operation
   Theatre and Intensive Care unit, i.e. Fixed pendants,
   fixed rigid pendant, single Arm movablependant,
   double arm multi-movement pendant etc.
Single over head suspension horizontal one arm system
   for OT gas terminal outlets.
Medflo pendant is a compact modular unit, which can be
   supplied in various configurations to meet exact
    requirement of hospital.
The pendant consists of a ceiling support, upon which a
   wide selection of arms can be mounted.
It has the greatest advantage to accommodate all
   Medical gas, Electrical services, Data communication
   services and facilitating equipment.
Extension arm horizontal 1 move by (radius) 900mm
Level degrees rotation;0-340 Extension Arm & terminal.
Box can rotate together and separately.
Net loading capacity 125 to 175kg.
Medical gas outlets configuration oxygen-2, Vacuum-2,
   Medical air-1, Medical air-7 bar, nitrous oxide–1
   (Quantity Optional).
Main socket: 8no’s 5-15amps (universal standard).
Main material used the high strength aluminum alloy,
   the whole sealed design.
Arm High Density aluminium alloy extrusion.
Ceiling mounted installation the reliable and firm.
Pendant N.W – 105Kg access by equipment carrier
Single over head suspension Horizontal.
Stainless steel I.V.pole.
Ward vacuum unit clamp.
