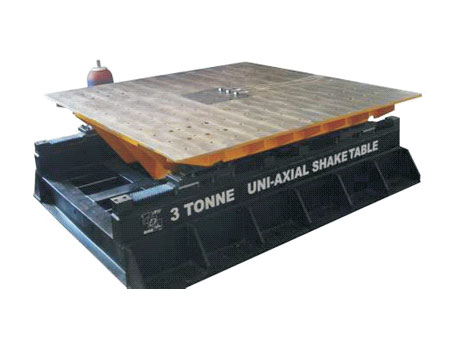

Single Axes Shake Tables

BISS Uniaxial Shake tables are designed to perform seismic qualification, solid liquefaction and vibration tests on models as well as for engineering qualification of components and assemblies for earth quake and vibration resistance.

The tables are designed with natural frequency to exceed 100Hz and the design ensures the c.g of the test object can be anywhere within the table and elevated up to 1000mm above the table. Precision machined rails engage with the linear bearings and provide linear horizontal movement.

• Pay Load Capacities up to 10000Kg
• High stiffness floor mounted reaction frames
• Table size mtr:0.5x0.5, 1x1, 1.5x1.5, 2x2, 2.5x2.5, 3x3
• Up to 1000 mm stroke servo hydraulic actuators
• Digital Encoder with stroke resolution of 1micron
• Acceleration range: Maximum 5g
• Frequency range: Maximum 50Hz
• Centre of Gravity (CG) above the table up to 1000mm
• Sustained velocity 1 mtr/sec
• Peak velocity 1 mtr/sec
• Works out of 1Ǿ 230VAC 3 kW
• Next generation DSP based servo controller with 32 bit data acquisition
• 24 kHz data acqusition & 24 kHz servo loop control
• Accuracy ± 0.5% of reading for acceleration& stroke
• Power packs with 11LPM to 500LPM flow rates

• Seismic qualification tests on components
• Basic research & component vibration studies
• Soil Liquefaction tests
• Earthquake motion simulation
