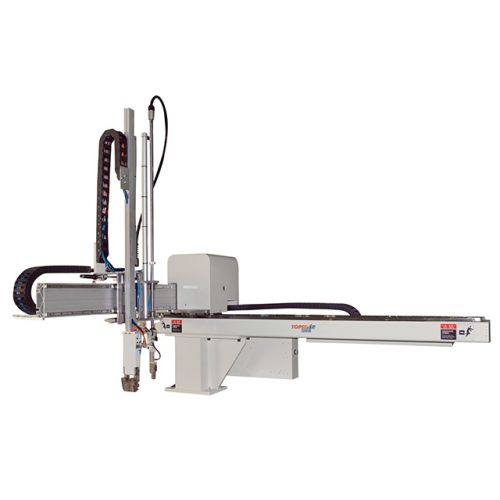

Single Axis AC Servo Driven Robots

Single Axis AC Servo Driven Robots are extensively applied to horizontal plastic injection machines ranging from 50 ~1800T which can take out the runners, runner and finished products from the mold of plastic injection molding machines. There are two types of arms-single stage and telescopic. The vertical strokes for single stage are 600800 and for telescopic are 60080090010001200mm. The arms move stably thanks to two sections of double speed structure. The traverse movement is driven by high performance AC servo motor. With different requirements of products, robot can work with various grippers and jigs to realize stable & perfect take-out products from mold by quick- descent of removal of products and slow -descent to place outside.
Mechanical Structure
High rigidity structure design, stable construction, low vibration, abiding and long service life.
Vertical and crosswise movement is driven by pneumatic cylinder. Traverse, crosswise and vertical unit adopt high precision linear guide way result in high speed and accurate position, high wear resistance, heat resistance, long service life without distortion.
High Performance Imported Ac Servomotor
Working with high precise linear guide way and imported steel wire belt driven result in high speed, low noise, precision position at ±0.1mm.
Jig Circuit
Molded parts are quickly remove from the mold and placed them carefully outside of machines. “Remove quickly and place carefully, require various jigs according to different products to realize stable and perfect motion – remove and place products safely.
