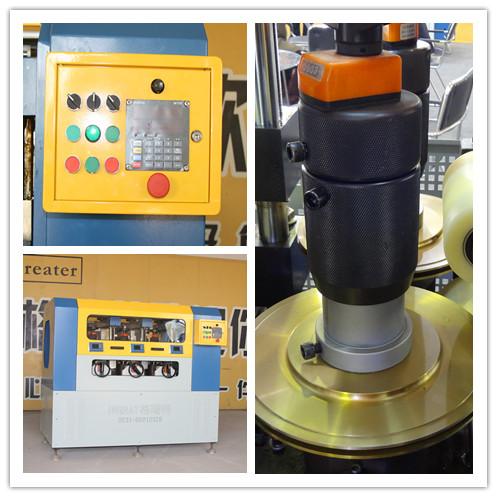

Single Axis Thermal Break Rolling Machine

We are offering single axis thermal break rolling machine.
Applications:
this aluminum profile rolling machine is to combine thermal barrier strip or plastic profile with aluminum profiles to make thermal break aluminum profile (also called bridge-cut-off aluminum alloy profile). Hardened rollers are used to press the knurled profile and thermal barrier strip or plastic profile together, to make a composite profile that has great insulation effect.
Features:
1.single axis cnc machine with three groups of hardened rolling wheels.
2.the software developed by ourself can save 10 types of data to recall driving.
3.frequency converter with stepless speed regulation function.
4.six rollers controlled by separate driving force guarantee stable rolling, higher speed, and higher efficiency
technical data:
model gyj-cnc-02
power supply 380v50hz
total power 4.73kw
roller diameter 240mm
the whole height of three sets of roller 0-80mm
max processing size of profile w*h=230mm*230mm
working speed 0-70mmin
overall dimension l*w*h=1800mm*1150mm*1600mm
weight 1500kg
packaging wooden box
