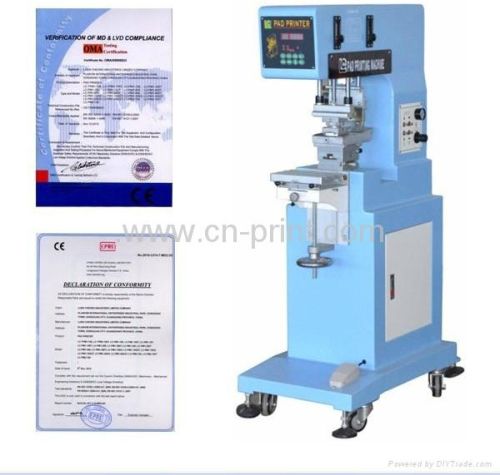

Single Color Open Ink Well Pad Printer

₹ 1.26 Lakh / Set

MOQ1 Set(s)
Wattage220V/ 50HZ
Machine weight110KG
OperationPneumatic
Printing area85*85mm
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

Member Since 14 Years
Nature of Business Manufacturer
Year of Establishment 1991

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Jigs1
Machine size(LxWxH)830x530x1400mm
OperationPneumatic
Machine weight110KG
Printing area85*85mm
Model NO.LC-PM1-100
Air pressure0.4-0.6Mpa
Max printing speed2000PCS/H
Wattage220V/ 50HZ
Plate area100*100mm
Printing Colors1

Feature

LC-PM1-100 it is standard model in pad printing line. Widely use for Special shape parts. Such as keyboard, mouse, toies, pens, Cosmetics package box, hardware

Parts.

1. Controlled by microprocessor, easy operation, running stably and accurately.

2.4-digit auto counter built-in.

3. Cast aluminum machine frame, low weight and high intensity, turnable machine head.

4. Separate adjustment of the pad up/down stroke speed.

5. Ink scraper is auto balance keeping in printing.

6. With the function of ink scraping nonstop without printing in order to prevent the ink from drying.

7. Ink cup is turn-able and adjustable in vertical and horizontal direction.

8. With super long slide stroke to print large size workpiece.

9. Speed of every single pneumatic organ is adjustable

Additional Information

Payment Terms L/C, D/A, D/P, T/T, Western Union
Port of DispatchShenzhen, China
Packaging Details1. One pcs steel plate 2. Two pcs rubber pad 3. Work box 4. English operating instruction 5. Wooden case
Delivery Time7 working days after confirm payment
