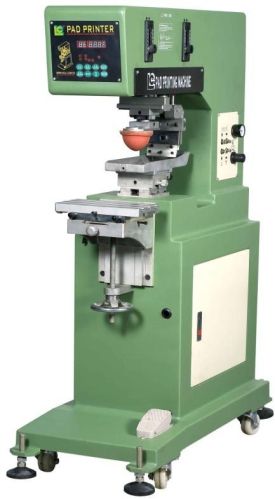

Single Color Pad Printer

We are offering single color pad printer.
Single color printing machine is electronic, plastics, toys and other products for monochrome
printing machinery, such as cell phone button, golf ball, toys, pens, mouse, electronic products,
handicrafts, etc., for a variety of printed materials for example: metal, glass, ceramics, plastics
and so on. Printing area is relatively small plane, and the irregular surface of the product arc
printing.
simple operation, easy maintenance and repair, lower prices for most used by visitors. If a
larger printable area by upgrading parts of the product.
Feature:
1, advanced computerized system control
2, which consists of four counters.
3, the body of high quality steel frame structure, surface temperature paint, light weight body
solid, beautiful and practical.
4, oil ink roller assembly and disassembly, and easy to clean.
5, independently adjustable plastic head up and down stroke and speed.
6, automatic balanced squeegee, scraping the oil neat.
7, each of the ink disk blocks can be x, y, angle independent tuning, chromatic accurate, and
improve efficiency.
8, a printing ink can stick two in order to obtain a larger printing ink.
9, you can not drop empty lines before and after the glue to prevent the pause when the ink to
dry.
10, the pneumatic components of germany festo pneumatic components, the movement
speed can be adjusted independently.
Lc-pm1-100
specifications：
operation：semi-automatic
no. Of color：1color (can be color-process)
working station：1pcs
working table area：200×125mm
standard plate area：100×100mm
max printing speed：2000 pcs/hr
power voltage：220v/50hz
power consumption：35 w
air pressure：6 bar
air consumption：110 liter/min
machine dimension：860×460×1400 mm
machine weight：94kg
lc-pm1-150
specifications：
operation：semi-automatic
no. Of color：1color (can be color-process)
working station：1pcs
working table area：200×125mm
standard plate area：100×150mm
max printing speed：2300 pcs/hr
power voltage：220v/50hz
power consumption：35 w
air pressure：6 bar
air consumption：110 liter/min
machine dimension：860×460×1400 mm
machine weight：103kg
lc-pm1-200
specifications：
operation：semi-automatic
no. Of color：1color (can be color-process)
working station：1pcs
working area: 400×165mm
standard plate area：100×200mm
max printing speed：2000 pcs/hr
power voltage：220v/50hz
power consumption：35 w
air pressure：6 bar
air consumption：110 liter/min
machine dimension：1250×530×1420 mm
machine weight 135kg
