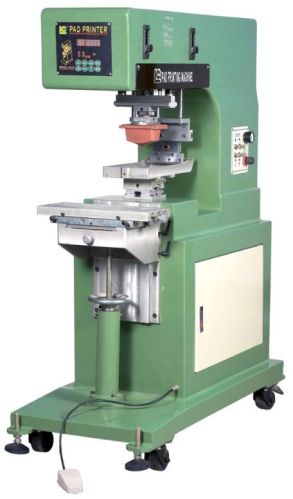

Single Color Pad Printing Machine

We are offering single color pad printing machine.
Single color pad printing machine is electronic, plastics, toys and other products for monochrome printing machinery, such as cell phone button, golf ball, toys, pens, mouse, electronic products, handicrafts, etc., for a variety of printed materials for example: metal, glass, ceramics, plastics and so on. Printing area is relatively small plane, and the irregular surface of the product arc printing.
simple operation, easy maintenance and repair, lower prices for most used by visitors. If a larger printable area by upgrading the products accessories
feature:
·advanced computerized system control
·pneumatically driven adopt from festo, can adjust the movement speed of each part
·built-in led digital counter
·emergency stop system to ensure the safety of operator
·light-weight, strong aluminum cast machine frame
·ink trays, work table and pads are independently adjustable for easy color registration
·speed, pad and printing stroke are easily adjustable for different printing requirements
·ink tray, doctor blade, brush and pads are easily installed and dismounted for quick cleaning
specifications：
lc-pm1-250
operation：semi-automatic
no. Of color：1color (can be color-process)
work station: 1pcs
cylinder head up and down distance: 75mm
cylinder stroke distance: 275mm
work table size: 400 × 165mm
standard plate size: 150 × 250mm (6 '× 10')
maximum printing area: 130 × 230mm
maximum speed: 1100 pcs / hr
voltage: 110v/220v 50hz
power: 35 w
air requirements: 6 bar
air consumption: 72 liter / min
machine size: 1250 × 530 × 1420 mm
machine weight: 140kg
lc-pm1-300
operation：semi-automatic
no. Of color：1color (can be color-process)
work station: 1pcs
cylinder head up and down distance: 75mm
cylinder stroke distance: 325mm
work table size: 400 × 165mm
standard plate size: 150 × 300mm (6 '× 12')
maximum printing area: 130 × 280mm
maximum speed: 900 pcs / hr
voltage: 110v/220v 50hz
power: 35 w
air requirements: 6 bar
air consumption: 72 liter / min
machine size: 1250 × 530 × 1420 mm
machine weight: 145kg
