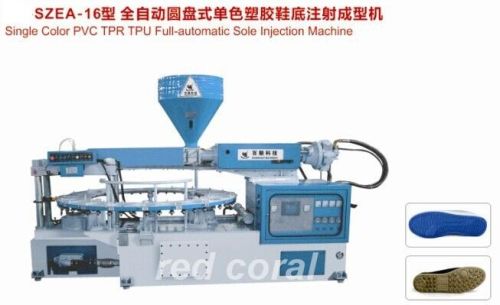

Single Color Tpr PVC Tpu Full Automatic Sole Injection Machine

We are offering full automatic sole injection machine. 1,the machine is suitable for all kinds of thermoplastic material, foaming
and non-foaming, such as tpu,tpr,pvc etc, for soles, injection.
2,full automatic computer control system,needn't specialist to operate,
can save lots of labour and time, low noise, low revolving speed&high
twisting hydraulic motor to drive feeding shaft with accelerated speed.
3,low noise, low revolving speed & high torgue hydraulic motor to
drive feeding shaft with stepless speed. The injecting quantity of as
material, controlled by computer, is divided into 20 kinds of injections
4,the output is 160 pairshours.
-szea-16-szea-20
injection capacity g 780×1
injection precision g ±0.45
injection hydraulic pressure mpa 6
screw rotary speed r.p.m 0-200
injection speed cmsec 10
mould clamping pressure mpa 5
system hydraulic pressure mpa 16
max injection stroke mm 200
mould-opening stroke mm 300
oil tank capacity kg 720
power of motor kw 22
electro thermal power kw 8
power of motor kw 22
mould station number a 16
max. Dimension of mould mm 3500×2450×24503500×2500×2450；
