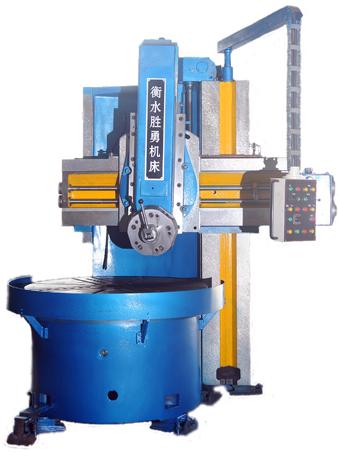

Single Column Vertical Lathe, Brand Name : Hengshui Shengyong

Hengshui shengyong heavy-duty machine tool manufacturing co.,ltd specializes in the manufactures and sells of metalworking machines: vertical turret lathe,cnc lathe machine,single column vertical lathe , double column vertical lathe machine ,heavy duty horizontal lathe machine, gantry milling machine(plano miller), gantry planer milling machine, roll turning lathe etc.
If interested, please feel free to contact us.best regards, abby shang
no unit c5123a
1 table diameter mm 2000
2 max.turning diameter mm 2300
3 max.height of workpiece mm 1300
4 max.weight of workpiece t 8
5 speed change of table rmin 2.5-80
6 step 16
7 feed rates minmin 0.8-86
8 step 12 12
9 horizontal travel of tool post mm 1250
vertical travel oftool post mm 915
10 horizontal travel of side cutter bar mm 650
vertical travel of side cutter bar mm 1000
11 crossrail travel mm 750
12 max. Section scale of tool bar mm 30×40
13 power of main motor kw 30
revolutions rmin 1470
14 power of feed motor kw 1.31.7
revolutions rmin 9401440
15 machine weight t 19.5
16 overall dimensions(l×w×h) mm 3300×3280×4000
