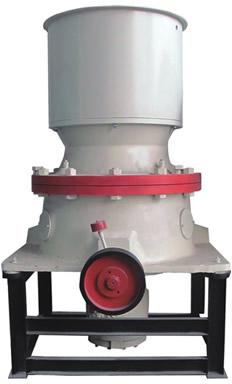

Single Cylinder Hydraulic Cone Crusher, Power : 90 (kw)

We are offering single cylinder hydraulic cone crusher.
1. Long life and wide usuage
2. High efficiency crusher
3. Energy-saving and high
1. Brief introduction of hydraulic cone crusher
single cylinder hydraulic cone crusher adopts the best combination of crushing frequency and eccentricity, so size of the crushed product is much smaller. therefore, more crushing and less grinding efficiency is more significant, crushing and grinding power consumption is reduced greatly. perfect combination of high crushing efficiency and highly efficient chamber makes larger capacity than other crushers. more materials are crushed by different layers, so size of final product is evenly cubic. hydraulic adjustment and method for cleaning chamber make operation and maintenance much more convenient and automatic. this series of single cylinder hydraulic cone crusher has much less trouble, and operating ratio is increased more than 85%, so the whole cost is reduced greatly.
2. Working principle of hydraulic cone crusher
crushing process is completed between the fixed cone and eccentric rotating moving cone. horizontal axis of crusher is driven by motor through the v-belt, and drives eccentric cover by gear. eccentric cover makes main shaft rotate to cause eccentricity. materials enter crushing chamber through upper inlet of crusher, and are discharged out through lower outlet.
3. Advantages of hydraulic cone crusher
1).human design and hydraulic adjustment of discharge outlet save time and work.adjustment can be controlled precisely.
2).single hydraulic system adjusts main shaft and body,the body can rise and decline integrally to adjust discharge size,so side cylinder and upper frame with slope can be avoided.
3).working pressure system can be adjusted hydraulically,pressure adjusting system can discharge super hard materials to protect the machine.
4).spare parts can be changed easily.fixed cone and cone body combine stably after precise design,and filler is not necessary to be filled again,so time to change spare parts can be saved.
5).hydraulic pressure of the whole machine is so low that it gives lower pressure to the main frame,and hydraulic system lasts longer.
6).the machine is designed with small size,so installation and transportation are very convenient.
4. Technical parameters of hydraulic cone crusher
model
type of chamber
feed inlet (mm)
max. Feed size (mm)
min discharge size (mm)
max. Feed size (mm)
power
(kw)
weight (t)
stroke
stroke
stroke
stroke
stroke
stroke
pyy100
16
22
16
22
90
6
a
150
120
12
15
39
37
b
130
105
10
11
33
31
c
100
85
7
9
33
30
d
40
32
5
6
31
29
pyy200
18
25
18
25
160
10.6
a
220
180
18
22
35
30
b
150
120
15
19
35
30
c
80
60
9
12
35
30
d
40
32
6
8
35
30
pyy300
25
32
25
32
250
18.5
a
230
190
20
25
45
40
b
150
125
17
20
45
40
c
80
60
10
13
40
35
d
40
32
6
8
40
35
pyy500
25
32
40
25
32
40
315
22.5
a
230
180
22
26
30
50
45
40
b
150
125
19
22
26
48
43
38
c
100
80
12
14
16
40
35
30
d
50
40
8
10
12
30
25
20
technical parameters of hydraulic cone crusher
model
type of chamber
inlet size (mm)
max feed size (mm)
min discharging size (mm)
max. Feed size (mm)
power (kw)
weight (t)
stroke
stroke
stroke
stroke
stroke
stroke
pyyz100
16
22
16
22
75-90
7.3
a
250
210
25
30
45
40
b
200
170
20
25
41
36
pyyz200
18
25
18
25
110-160
11.8
a
330
280
27
30
65
60
b
250
210
25
28
60
55
pyyz300
25
32
25
32
160-250
20
a
380
320
28
32
73
69
b
280
240
26
30
66
62
pyyz500
18
25
32
18
25
32
250-315
33
a
500
420
50
55
60
80
75
70
b
380
320
40
45
60
70
65
60
we(shenzhen yuhan electro-mechanic co.,ltd)are pleased to introduce you ourselves as one of the leading and well established/manufacturing and supplying of high quality products as below main items:
stone production line:
including:
jaw crusher
impact crusher
cone crusher
hammer crusher
vibrating screen etc
sand making production line:
including:
jaw crusher
sand making machine (vsi crusher)
ball mill
cone crusher
hammer crusher
sand washing machine
vibrating screen etc
we have a perfect after-sales service system and team with professional after-sales service has provided customers with prompt and thorough service. Our price are most competitive and reasonable, all order will be supplied within the stipulated period. Awaiting your first inquiry order.
