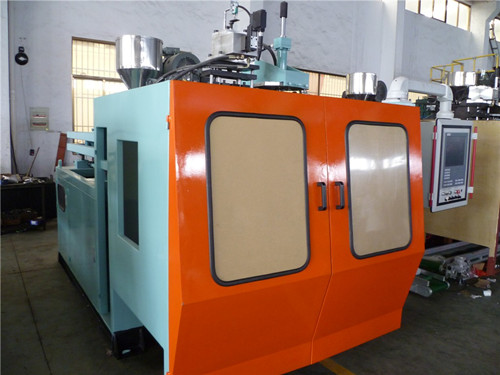

Single Die Head Blow Molding Machine

We are offering kst65-2t blow molding machine specifications:
extruder
1 screw diameter 65mm
2 ld ratio 24：1
3 transparent line screw diamete 25mm
4 ld ratio 22：1
5 screw speed 8-80r.p.m.
6 drive motor ac 15kw 3 phase asynchronism motor
7 transparent line screw power 0.75kw
8 inveting drive america amerson
9 heating zone with cooling fan 3 zones
10 output throughout 65-70kghr（hdpe particle）
11 heating capacity 3x3.6(=10.8) kw
12 vertical adjustment of head 300mm
13 rightleft adjustment of head 20mm
14 groove feed barrel cylinder no
15 gear box hard gear decelerator
16 cycloid pin reducer great wall shanghai
17 safety precaution safety door and safety switch
die head
1 continuous extrusion central incoming
2 design first in, first out
3 heating zone 3 zones
4 heating capacity 5.7kw
5 max die&pin diameter 155mm
6 die head axis with pre-blow ï¿ 12mm
clamping unit（single station）
1 tie bar c model double tie bar
2 platen size 320（w）x370（h）
3 size of mold 350×370mm
4 clamping force 68kn
5 closeopen stroke 150-500mm
6 mold thickness 153-300mm
7 clamping stroke measurement proximal sensor taiwan riko
8 number of hydraulic cylinder 3
9 high pressure 12mpa
10 support parts for platen movement moving and clamping axis.
