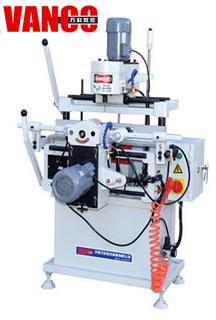

Single Double Axis Copy Routing Machine

We are offering singledouble axis copy routing machine for aluminum window and door lxf2-290*100lxf-290*100
features:
1. Used for drilling, grooving and outfall making of aluminum door and window.
2. Adopts two copy ways: copy template and assistant position system.
3. Foot switch controls clamping cylinder which is safe and reliable.
4. Compact structure with small volume.
5. Possess two power heads in horizontal and vertical direction; it can finish two machining in one time.
Technical parameter:
power supply: 380v50hz, three-phase five-wire
motor power: 2*0.75kw
operation air pressure: 0.4~0.8mpa
air consumption: 10lmin
milling cutter diameter: φ5mm, φ8mm
milling copy contactor diameter: φ5mm, φ8mm
motor revolving speed: 2800rmin
process roughness: ra12.5µm
processing dimension range:
horizontal: 290mm*90mm*100mm (l*w*h)
vertical: 290mm*85mm*85mm (l*w*h)
dimension: 4050mmx950mmx1400mm (l*w*h) (including table)
weight: 225kg
