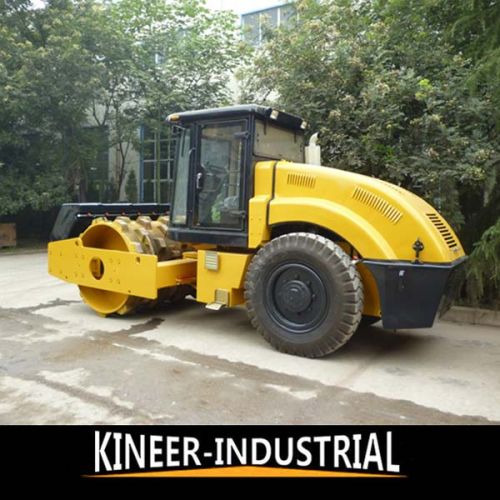

Single Drum Hydraulic Vibratory Roller

₹ 25.34 Lakh / 30000 30000 Set

MOQ1 Set(s)
TyreSmooth tyre or pattern type
Centrifugal force70kN
Vibration amplitude0.4mm
Static linear load230N/cm
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

Member Since 10 Years
Nature of Business Exporter
Year of Establishment 2013

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Engine modelChinese Cummins 4BT3.9
Static linear load230N/cm
Operating weight8000kg
Vibration pumpReliable gear pump
Min. ground clearance280mm
Vibration typeHydraulic front drum vibration
Centrifugal force70kN
Vibration frequency43Hz
Overall dimensions5030x1880x2570mm
Travel Speed0-10km/h
Engine power/speed75kW/2400rpm
PadfootRemoval sheep padfoot
TyreSmooth tyre or pattern type
Drive motorOriginal SAUER piston motor
Grade ability25%
Drive typeFull hydraulic rear wheels drive
Water tank capacity450L
Drum width1700mm
Vibration amplitude0.4mm

Single Drum Hydraulic Vibratory Roller is manufactured, exported and supplied with engine model as Chinese Cummins 4BT3.9 by us from Henan, China. The operating weight is 8000kg and it has the drive type of full hydraulic rear wheels drive and the drive motor is the Original SAUER piston motor. The grade ability is 25%. The frame is articulated frame, hydraulic steering and flexible drive. The water tank capacity is quite large and it has a unique nozzle style.

8 Ton Single Drum Hydraulic Vibratory Roller

Hydraulic vibration, great centrifugal force and high compactness
Mechanical travel, pneumatic tire drive, three speed changes both forward and backward and high speed travelling
Articulated frame, hydraulic steering, small turning radius and fexible drive
Full anti-corrosive spray water system, large capacity water tank, electrical pressurized sprinkler and unique nozzle design which covered all of the steel and pneumatic wheel.
