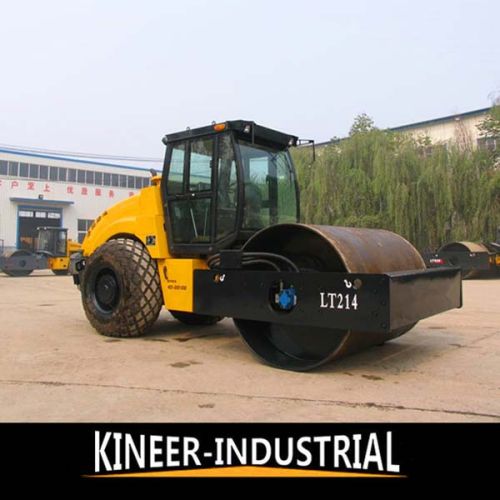

Single Drum Vibratory Roller (14 Ton), Engine Power : 110kW/88kW

₹ 29.87 Lakh / 35000 35000 Set

MOQ1 Set(s)
Engine Power110kW/88kW
Tyre specification23.1-26
CabinSealed cabin
OptionsAir-conditioner, sheep padfoot
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

Member Since 10 Years
Nature of Business Exporter
Year of Establishment 2013

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Engine Power110kW/88kW
Operating weight14000kg
Travel Speed2.0/4.0/10.5km/h
Tyre specification23.1-26
Hydraulic oil tank capacity150L
Drum thickness24mm
Min. ground clearance432mm
Vibration amplitude1.8/0.9mm
Centrifugal force290/160kN
CabinSealed cabin
Vibration pumpReliable PERMCO gear pump
OptionsAir-conditioner, sheep padfoot
Fuel tank capacity180L
Overall dimensions5860x2350x3100mm
Static linear load342N/cm
Engine modelChinese DCEC Cummins or YC6B120 diesel engine
Drum width2100mm
Grade ability35%
Vibration frequency30Hz

Based in Henan, China, we export, manufacture and supply Single Drum Vibratory Roller (14 Ton) with the operating weight capacity of 14000kg. The fuel tank capacity is 180L and the hydraulic oil tank capacity is 150L. The rubber damping elements used here are of supreme quality and they are mounted over by spacious and comfortable cabs. This equipment is made using the latest world class technology to ensure its reliability and durability.

14Ton Mechanical Dual-amplitude Single Drum Vibratory Roller

Mechanical travel drive, double amplitude, hydraulic vibration and steering with optimal function/price ratio and reliable performance.
Reliable Chinese YUCHAI YC6B120 or DCEC Cummins 6BT5.9 diesel engine for convenient operation and maintenance.
Two sets of brake devices, a hand brake and foot pedal brake, assure the machine's safety and dependability.
Spacious and comfortable cab mounted on top quality rubber damping elements.
World advanced technology is adopted for the hydraulic vibration technology, high in reliability, simple and convenient in maintenance, and low in cost.
Equipped with padfoot or removal padfoot as option.
