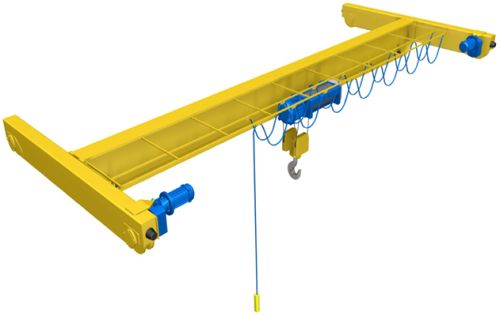

Single Girder E.O.T. Cranes

We are engaged in manufacturing and supplying high quality range of Single Girder E.O.T. Cranes which are used for moving loads in different such as up, down, right and left easily. These machines are widely acclaimed for their qualities like high performance and optimum quality. The offered machines are manufactured using premium quality basic raw materials that is procured from our trustworthy vendors of the industry. Further, these Single Girder E.O.T. Cranes are available in various standard and tailored specifications which are offered at the most reasonable prices.

Features:

1. Cranovator cranes have high quality structural assembly which ensures  acquiescence with ISO      4301
2. Cranovator cranes have minimum maintenance and emergency interlude
3. Easily adjustable limit-switches
4. Load tested to 125% and certified by Cranovator from tests undertaken in our own workshops

Range of Specifications:

1. Safe Working Load: 500 kgs to 20,000 kgs
2. Span: 3 mtrs  to 30 mtrs
3. Height of Lift: As per customer specifications
4. Class of Duty / Standards: Equivalent to M3,M5, M7, M8 as per IS 3177 / IS 807
5. Speeds: Selected depending on client specifications / applications / shed dimensions
6. Crane Control: From floor through Pendant Push Buttons, Optionally through Radio Remote Control / cabin with master control
7. Drive System: Twin Drive through Squirrel Cage Induction Geared Motors with built-in fail safe brakes
8. Motors: Squirrel Cage Induction Hoisting Motors with built-in fail safe brakes for Hoisting, Cross Travel as well as Long Travel. Insulation Class for all motors B/F
9. Brakes: Built-in Brakes for Hoisting, Cross Travel and Long Travel motions
10. Power Supply System: To Hoist and Cross Travel through Trailing Cables / Drag Chain To Crane through Shrouded Bus Bars / Trailing Cable / MS Angle Iron Conductors / Bare Copper Conductors (depending on customer’s choice and application)
