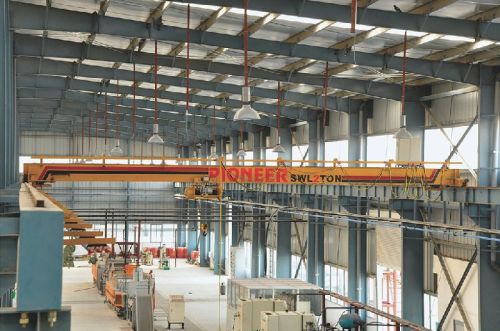

Contact SupplierSingle Girder Overhead Cranes are adapted for a Light duty range of daily usage in plants and workshops to ease material flow.These Single Girder Overhead travelling cranes are built for your lifting needs up to 20 T and up to 40 meters span, and can be installed in new or existing buildings. Our single girder overhead travelling cranes are built with welded box sections only.Â
The highly important connection between girder and end-carriage deserves a special attention to avoid long term wear and is accurately prepared on assembly bench.Our Overhead Travelling Cranes are designed and made according to your instructions and our quality procedures in accordance with IS: 3177/1999.
Â
Â
Technical FeaturesElectrical Traveling Cranes |
Low headroom monorail hoists |
Specialized design and looks |
20 Tons and span up to 150 ft |
Top and under running facility |
Standard components and controllers ensure reliability |
Â
Â
Â
Applications of Single Girder E.O.T. CranesMaintenance Purpose |
Very useful for places with low heights |
Increased Hook Approaches |
Increased End Approaches |
Below mentioned specification are subject to change without any prior intimation for the betterment of the product ( dated March 2017)
Capacity in Tons | Span in Metres | Head Room Clearance in mm HRC | End Clearance in mm ELS/ERS | WHEEL BASE(In mm) | HOOK APROACH (Left Side/ Right Side)(In mm) | Total Wt. of Crane in tons (approx.) | Wheel load of crane in tons (approx.) |
1 | 5 | 700 | 220 | 2000 | 750 | 1.00 | 1 |
10 | 800 | 220 | 2500 | 750 | 1.00 | 1 | |
15 | 850 | 220 | 3000 | 750 | 3.00 | 1 | |
2 | 5 | 800 | 250 | 2000 | 750 | 2.00 | 1 |
10 | 900 | 250 | 2500 | 750 | 2.00 | 2 | |
15 | 1000 | 250 | 3000 | 750 | 4.00 | 2 | |
20 | 1200 | 250 | 4000 | 750 | 5.00 | 2 | |
3 | 5 | 800 | 250 | 2000 | 850 | 2.00 | 2 |
10 | 900 | 250 | 2500 | 850 | 3.00 | 2 | |
15 | 1000 | 250 | 3000 | 850 | 4.00 | 3 | |
20 | 1250 | 250 | 4000 | 850 | 7.00 | 3 | |
5 | 10 | 950 | 250 | 2500 | 950 | 3.00 | 3 |
15 | 1200 | 250 | 3000 | 950 | 6.00 | 4 | |
20 | 1300 | 250 | 4000 | 950 | 7.70 | 4 | |
7.5 | 10 | 1000 | 250 | 2500 | 1000 | 6.00 | 5 |
15 | 1250 | 250 | 3000 | 1000 | 7.00 | 5 | |
20 | 1400 | 250 | 4000 | 1000 | 9.00 | 7 | |
7.5 | 10 | 1000 | 250 | 2500 | 1000 | 6.00 | 5 |
15 | 1250 | 250 | 3000 | 1000 | 7.00 | 5 | |
20 | 1400 | 250 | 4000 | 1000 | 9.00 | 7 | |
10 | 10 | 1100 | 270 | 2500 | 1100 | 5.00 | 6 |
15 | 1350 | 270 | 3000 | 1100 | 8.00 | 7 | |
20 | 1500 | 275 | 4000 | 1100 | 10.00 | 7 | |
15 | 10 | 1200 | 300 | 2500 | 1100 | 7.00 | 9 |
15 | 1500 | 300 | 3000 | 1100 | 10.00 | 10 | |
20 | 1600 | 300 | 4000 | 1100 | 12.00 | 11 |
