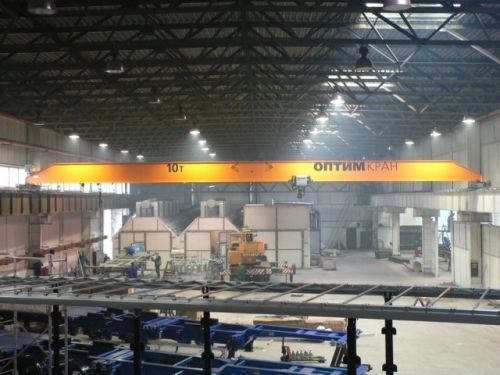

Single-girder Overhead Travelling Crane

We are offering single-girder overhead travelling crane.
dear clients!
we offer cooperation in designing, manufacturing, delivery and assembly of cranes, single-girder double-girder overhead travelling cranes underslung cranes crane modernization gantry cranes bridge cranes and metal constructions for you.
crane load capacity, t - from 5 to 32 tons
span, m (l) - to 28,5 meters
lifting height, m (h) - 3; 6; 9; 12; 15; 18; 24; 30; 36 meters
speed, m/min:
- load lifting - from 0,1 to 12
- hoist travel - to 20
- crane travel - to 60
crane work load group according to iso 4301/1 - a1…a5
mechanism work load group according to iso 4301/1 - m3…m5
grappling device - hook, traverse, electromagnet, grapple and other
crane control - radio control, suspended remote
drive control system - frequency, transmitter, mixed
climate production - u1, u2, u3
power line - sliding, cable
operational temperature range °c - from -40 to +40
motoreductors of compact design, with built in breks controlled by frequency converters
hoists of reduced design height to achieve the maximum lifting height
power line connected to the trolley by flexible cables contained in a rigid profile
the control console moving independently from the hoist
possibility for radio control
imported crane components
quick to assemble and easy to operate
