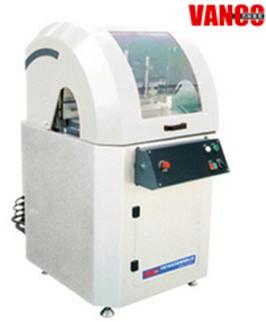

Single Head Cutting Saw

We offer single-head cutting saw for aluminum profile ucs-420
function:
used for curtain wall and aluminum window accurate cutting, also for upvc profile.
Features:
1. Cemented carbide saw blade ensures high speed and accurate cutting.
2. Size positioning frame can be installed, as well as the digital display device according to customers’ requirement, which can make the locating size more accurate.
3. The workbench rotating between (-15°) ~90°~ (+15°). The workbench can be 0° positioning after the plate retrocession, and raised and fix the saw blade used as routing saw.
Technical parameter
power supply: 380v50hz, three-phase five-wire
motor power: 1.5kw
air pressure: 0.5~0.8mpa
air consumption: 0.03m³min
saw blade standard: φ400mm*φ30mm*3.5mm*80
motor revolving speed: 2800rmin
cutting angle: (-15°) ~90°~ (+15°)
angle error: ≤5′
cutting width: 165mm (90° max)
cutting height: 120mm (90° max)
dimension: 3850mm (l) *900mm (w) *1300mm (h)
weight: 600kg.
