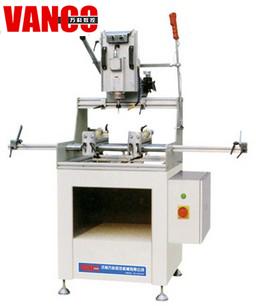

Single-head High Efficiency Copy Routing Machine

We are offering single-head high efficiency copy routing machine for aluminum window and door lxfa-370*125
features:
1. Used for drilling, grooving and outfall making of aluminum door and window and curtain wall.
2. Compact structure with attractive appearance.
3. Pneumatic device controls the profile clamping device and motor starting which is safe and reliable.
4. Large scope of machine head horizontal movement.
5. Easy adjustment and replacement of the copy-routing plate.
6. Superpower frequency converter electric main spindle with wide range application can process continuously which is easy operation, high efficiency and safe.
Technical parameter:
power supply: 380v220v50hz
operation air pressure: 0.5~0.8mpa
air consumption: 10lmin
input power: 2.2kw
motor revolving speed: 0~12000rmin
copy range: 370mm*125mm
process roughness: ra12.5µm
milling cutter diameter: φ5mm, φ8mm
profile processing section：
230mm (w)*150~210mm (h) (it is depend on the length of knife)
dimension:
2180mm*1000mm*1700mm（l*w*h）
