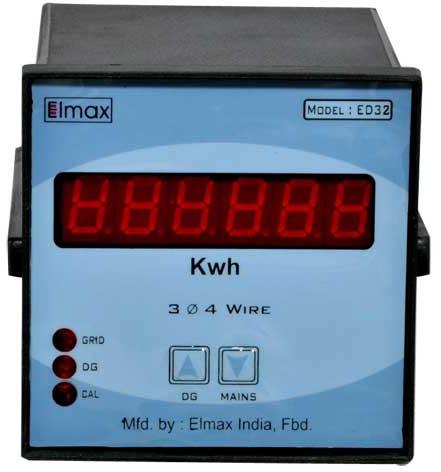

Single Kwh Meter LED Display

Elmax makes single kwh meter with panel base mounting. The product reads power consumption from dg and mains separately. Single kwh meter is provided with direct load up to 60 amp with max demand settings and rs 485 port. Single kwh meter is available in ledlcd display. The meter is designed at par with international quality standards. These single kwh meters are available in various sizes, designs & other specifications to meet varied demands of clients from real estate, telecom, electrical industry and many more. The dual metering provides best solutions for multistory apartments with dg power backup. The single kwh meter can be easily used with single point power supply connections from electricity boards and thus avoids formalities and costs of individual connections from authorities. Meters are designed as per is13779 and meets type tests as applicable. Single kwh meter delivered by us is highly acknowledged for their compact design, optimum performance, easy to install & operate, and low maintenance charges. Owing to the unique features, the phase dual source energy meter is widely used in varied industries like automobile, chemical, plastic and many more.
key features
lcd display with kwkwh, and kw limitdirect reading, no multiplying factor used.non-volatile memory for data storagedirect application up to 4060 amprs 485 port.
Specifications
registers & display the energy of dual source independentlydisplay of kw, kwhdirect reading, no multiplying factor is used.programmable max demand kw limit (can be set on site)led displayload limit on dg   can be assigned independently.non-volatile memory for data storageexternal contactors for auto cut-off up to 60 ampmodel : ed 32input voltage : 230vcurrent input : 10-60 amp direct5ampsize 96x96x110, panel mountedmultifunction energy meterdual lcd energy meterwall mounted dual energy meter
