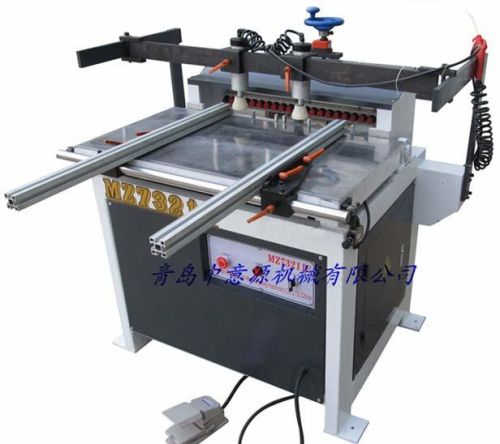

Single Line Woodworking Drilling Machine

We are offering single line woodworking drilling machine.
Main features
1. Mz73211 single row of multi-axis drilling woodworking is commonly used in the production of furniture row drilling woodworking machinery and equipment, the machine is mainly used for the horizontal and vertical directions plate coupling hole drilling tip.
2.the machine has the function of a one-time processing of multiple holes, and one horizontal row can also be converted adjustment (pneumatic) vertical position to achieve your goal to complete the process in two directions, thereby improving efficiency.
3.this machine adopts international standard import drill row, high precision drilling. Drill row using fast connections, replace the drill bit fast; the machine structure design, advanced technology, easy operation and adjustment, stable and reliable.
technical parameter
amount of drilling rows
21spindle*1line
drilling spindles
21
the diameter of the drilling bits
10mm
the max drilling diameter
35mm
the max drilling depth
60mm
the max drilling distance
640mm
the min drilling distance
32mm
spindle speed
2840rmin
motor power
1.5kw*1
compressed air pressure
0.6-0.8mpa
outsize
1400*1300*1400(mm)
