Single Needle Row Quilting Embroidery Machine

Single Needle Row Quilting Embroidery Machine

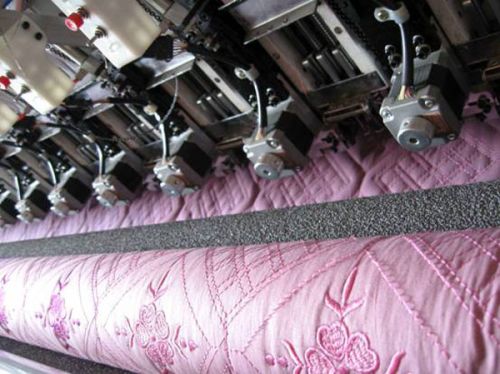

Single needle row quilting embroidery machine is multi-heads quilting embroidery machine, it has 3 colors one every head, and it has automatic trimmer or no trimmer function as you select, and it has 16, 18, 20, 22, 24, 25, 30, 33 heads machines, over 25-heads machine can make 2 single roll of fabric by 1.6m width or to make 1 big roll of fabric by 3.2m width. And less 25-heads machine can make only 1 single roll of fabric by 1.6m width and can be equipped with double front style sequins device from both sides on every heads.
•Can do computerized quilting & embroidery in one machine with working speed by 250rpm-880rpm.
•10 inch Display， can be attached with sequins device, simple chenille device and simple cording device, and can be combined with professional cording heads together, too. Convenient operation, easily to be grasped.
•Automatic color changing system and you can select any head you like to quilt and embroider. And 3 colors can be automatically changed.
•Equipped with automatic tightening and loosening system in the fore and in the back, Roller design in Y direction, which can do Continuous quilting & embroidery in Y direction by unlimited length of fabrics, the cloth can be continuously embroidered and quilt.
•And it can be equipped with auto oiling system under options, this is not standard equipment.
•Low noise: Adoption of the advanced technology of 3-phase subsection control making the frame movement more stable and smooth, efficiently decrease the vibration and noise to the lowest level.
•Adopt independent foot pressure system, that make the finished product stereoscopic and with aesthetic effect.
•Power Failure Protection Measures: machine has automatic Protection and memory functions against power off.
•Thread-breakage detection and quilt compensating functions under thread breaks.
•Speed up and down running forward or back in the moving material.
•Thread-cutting system: the thread cut length can be controlled.
•Thread centralized hooking system can be equipped under your requirements, more stable.
•Y direction adopts advanced driving structure, machine running more precisely.
Specifications:
•Adopt 3.5" floppy disk, available for Tajima and Barudan format
•Pattern pantograph: designs can be scaled up or down in 1% increments in the range of 50%-200%. Also designs may be rotated.
•Stitch length: Binary scale: 0.15-12.7mm
•Stitch memory: 1,200,000stitches
•Patter storage capacity: 100patterns
•Power: 4.5-5KW.
•Voltage: Three-phase 380V or single phase: 220V (50HZ/60HZ)
•Machine weight: MYQH3-22-6”: 2.1T; MYQH3-26-5”: 2.37T; MYQH3-33-4”: 2.6T
•Adopt Japanese imported Panasonic Servo Motor & Driver
•Adopt Japanese imported Hinrose rotary hook
