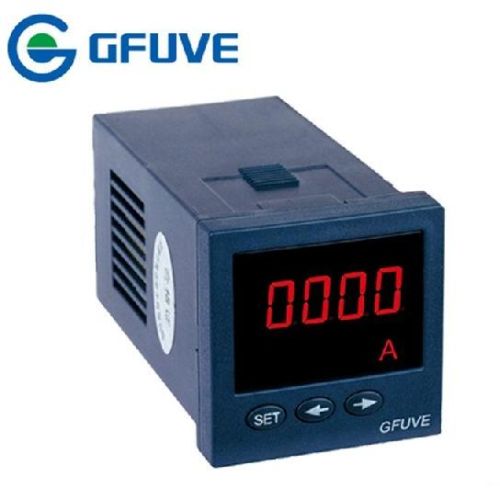

Single Phase Current Display Meter

Introduction:
fu8000 series single phase current and voltage display meter has replaced the traditional digital meter products. This product has the function of traditional products, also has programmable functions, such as dc4-20ma analog output, rs-485 communication interface port and the switching power output function. It has high accuracy, excellent emc and good appearance and so on.
features
1.it has programmable function
2.dc4-20ma analog output
3.high accuracy, excellent emc and good appearance
4.rs-485 communication interface port
technical parameters
programmable pt, ct ratio, address, baud rate and other parameters.
Accuracy 0.5 class, frequency 0.2 class
display figures 4 bits (4½ bits for dc)
rated input current: 1a,5a; voltage: 100v, 220v, 380v;
temperature: pt100,j,k,t,e thermocouple.
Over range current: 1.2 times continuous, 10 times10s ;
voltage: 2 times continuous
frequency 50hz 60hz ±10%
power supply ac220v ± 20% or dc100-300v (customization)
power consumption
