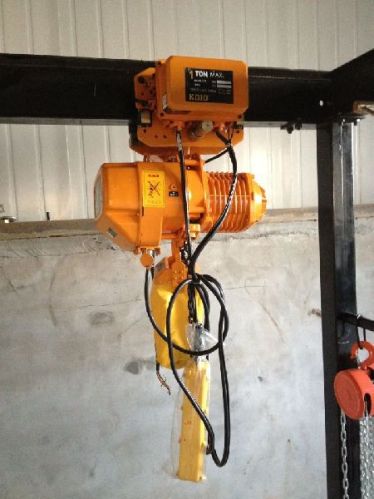

Single Phase Electric Chain Hoist

Electric Chain hoist Advantage                                                                  Introduction of Hot Sale CE Certificate Crane, Eelectric Chain Hoist   1. With suspension hook, push, geared or electric trolley.2. Standard lift height 3-9m, operating voltage 220-440V, 50/60Hz, 1-3phase.3. Low voltage control 24V or 36V is standard.4. High efficient energy-saving motor, asbestos free brake system.5. Light weight, compact and solid body case.6. Top and bottom hooks are fitted with safety latches as standard.7. Drop forged steel suspension & load hooks are heat treated and fracture resistant. In case of dangerous overloading or abuse, the hook does not fracture but will slowly yield.8. Strong chain bucket.9. Super strong surface hardened chain.10. Limit switch devices fitted at both top & bottom ends, switch off power automatically to prevent load chain from running out. Model DHL 0.3-01 0.5-01 01-01 01-02 01-03 02-01 2.5-01 03-01 05-02 7.5-03 nominal load (t) 0.3t 0.5t 1t 2t       3t 2t 2.5t 3t 5t 7.5t lifting speed (m/min) 8.0 8.0 6.8 3.4 2.3 9.4 6.8 5.6 3.4 2.3 moto power (Kw) 0.8 0.8 1.5 1.5 1.5 3.0 3.0 3.0 3.0 3.0 rotate speed (r/min) 1440 r/min Motor insulation class F working voltage   380/220 control voltage 24V / 36V / 48.
