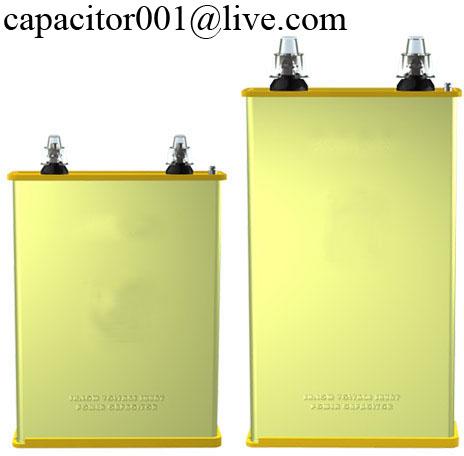

Single Phase Power Capacitor, Brand Name : Running

Series single phase power capacitor
rated voltage range from 220-1000 vac
connection 3 phase (1 phase on request)
frequency 50/60 hz.
powerrange 1-100 kvar
dielectric metalized polyprolilene film
protection ip 42 (ip 54 on request)
discharge resistors built in automatic discharge resistors included, less than 75v within 3 minutes after de-energizing the capacitor
tolerance ±5%
maximum ambient temperature  -25 ºc--50ºc  (other temperature range on request)
  average temperature within 24 hours below 40ºc&average
  temperature with a year below 30ºc
max. Relative humidity ≤90%
max. Altitude ≤2000m (other altitude on request
over voltage tolerance 1.1   un  (8 hours max. In every 24 hours)
1.15 un  (30 minutes in every 24 hours)
1.2 un  (5 minutes in every 24 hours)
1.3 un  (1 minutes in every 24 hours)
over current  tolerance 30% permanently
max. Surge current 200 times of rated current
dielectric loss ≤0.2 watt / kvar
voltage test between terminals: 2.15 un for 10 seconds.
between terminals to container:  3000vac for 10 seconds
safety system self protection device
case material rust-proof tinplate
execution indoor, minimum distance between units  : 50mm
standard iec60831 / gbt12747.
