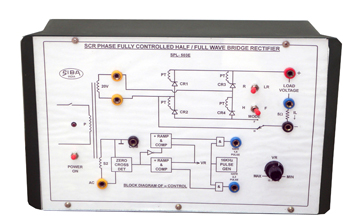

Single Phase Scr Half/full Wave Fully Controlled Rectifier

In ac circuits the phase controlled rectifiercan be turned on at any angle a with respectto the applied voltage polarity. The angle a isoftenly called the firing angle. These circuitsare characterized as controlled rectifiers orconverters. In present model study of suchcontrolled rectifier in bridge configuration isperformed.
