Single Phase Static Energy Meter

Supply TypeSupplier, Retailer
Preferred Buyer Location All over the world

The company has cemented its presence among the successful Suppliers of Single Phase Static Energy Meters. The Energy Meters offered by us is designed and manufactured using advanced....

View More Details

Send Enquiry

Company Information

Adesh Electricals

Proddatur, Cuddapah, Andhra Pradesh

4.0/5

(1)

View Number

Member Since 10 Years
Nature of Business Retailer
GST No. 37AWDPJ9979N1ZG

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

The company has cemented its presence among the successful Suppliers of Single Phase Static Energy Meters. The Energy Meters offered by us is designed and manufactured using advanced technology. Buyers are free to place bulk orders of these with us and we ensure their timely execution. Buyers can obtain these at competitive rates.
More about Direct-connected Single-phase Energy Meter :

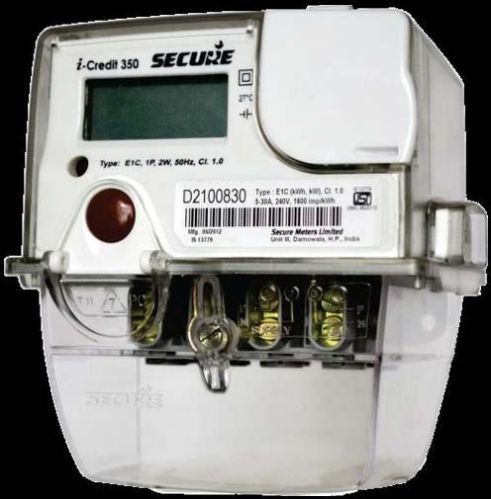

i-Credit is the name of our family of single-phase direct connected 'intelligent credit' meters, stemming from our experience at the forefront of metering technology.
i-Credit 350 is the latest member of this family, featuring enhanced tamper detection facilities and interoperable DLMS communication protocol.

Application :

Domestic billing
Small commercial premises

Benefits :

Compact and accurate
Protects against tamper attempts

Features :

Consumer-friendly display
Envelope architecture (integrated base and cover design)
Open DLMS protocol for meter reading
Load profile recording
Time-of-use tariffs
Historical registration of billing data
Optical communication port for data retrieval
High-intensity LED for testing and calibration
Power factor recording
Meter reading in absence of mains
Deficiency recording in absence of neutral
Support forward recording in case of current reversal

Technical Specifications

Electrical Connection type Wiring configuration Voltage range Voltage range Accuracy Mains frequency Burden	Direct connected Single phase, two wire 230/240 V (L-N) 5-30 A or 10-60 A Class 1.0 50 Hz ± 5% As per standards
Compliance Standards*	IS 13779, IEC62052-11, IEC62053-21
Mechanical Dimensions (W x H x D) Weight Enclosure Sealing	129 x 133 x 84 mm (approx.) 0.5 kg (approx.) Engineering plastic Provision for sealing on meter enclosure
Environmental Ingress protection Insulation class Impulse withstand Temperature Humidity	IP 51 Protective class II 10 kv -10 ^oC to +55^oC (operating) -25 ^oC to +70 ^oC (storage) 95% non-condensing
Features Tariff Maximum demand Load survey	Up to 4 rates Up to 2 types, configurable in 4 registers Up to 60 parameter-days with 30-minute integration period
Communication	IEC 1107 physical port for local communication
