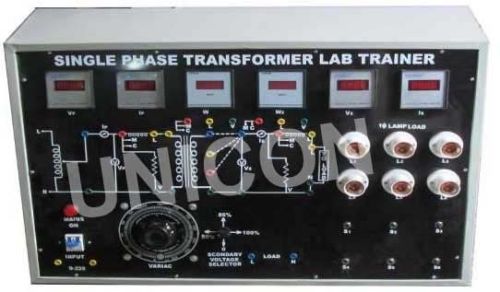

We are offering single phase transformer lab trainer experiments: • study of 1 phase transformer connections • efficiency test on 1 phase transformer • ratio, voltage, power and current measurement in single phase • open and short circuit test. Features: • electrical control panel with 1 single phase 1kva transformer. • panel size 36x24 inches. • transformer provided will be high quality copper wound. • primary of transformer of 220v and secondary will be 110v. • there are 3 tapping in the secondary at 50%, 86%, 100%. • transformer will be differently housed in a ms powder cabinet for easy carrying and other general use. • panel consist of ms powder coated housing with back side removable. • panel fitted with front panel of insulated bakelite sheet 6mm thick. • it is fitted with appropriate digital voltmeter, ammeter & wattmeter to record the readings. • short circuit protection with the help of mcb. • 4a variable ac supply is provided separately through variac for short circuit test. • load bank is provided internally on panel with 100w electrical bulbs. • connections through 4mm safety terminals. • supplied with instruction manual
