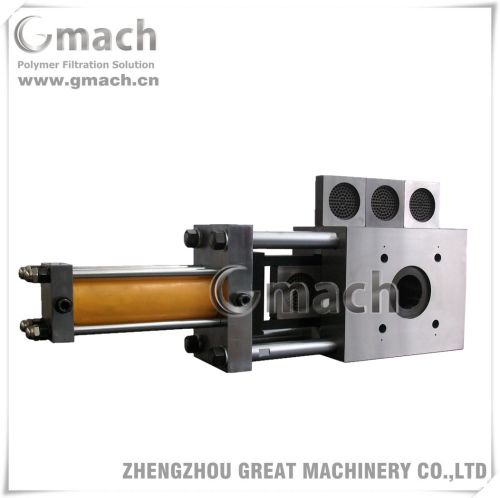

Single Plate Four Working Station Extruder Hydraulic Screen Changer

Single plate type four working station hydraulic screen changer for plastic recycling extruder
Principle of operation
The below of drawing shows the basic function and specification of the single plate type four working station hydraulic screen changer. The four pieces of square filter plate are placed between inlet and outlet. The hydraulic station will supply the necessary power to push each screen move to the working station with proper movement. The stainless filter holes will smoothly move into the flow channel without causing much fluctuation and meantime realize self cleaning function.
ZHENG ZHOU GREAT MACHINERY CO.,LTD
website:http:www.gmach.cn                 E-mail:lucy@gmach.cn
Technical Date
Type Screen diameter(mm) Filtration area(cm2) Heating power(kw) Output(kgh)
GM-CSP-70 Φ70 38 3.2-4.5 50-250
GM-CSP-100 Φ100 78 4.8-7.0 220-480
GM-CSP-150 Φ150 176 7.2-9.5 420-900
GM-CSP-200 Φ200 314 8.2-11.0 500-1100
