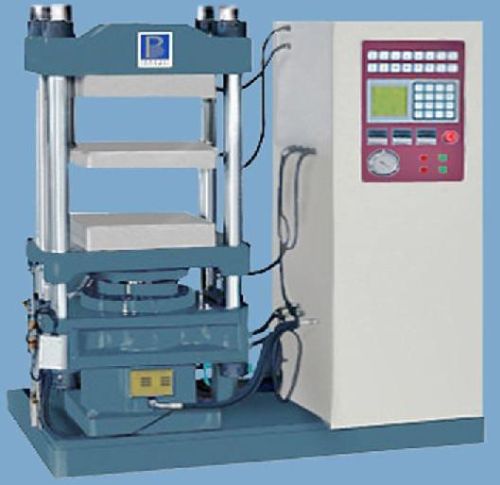

Single PLC Plate Vulcanizing Press Machine

PLC control single plate vulcanizing press machine  This singlevulcanizing press machine applies to the compressionand molding of rubber, plastics, resins and other polymer materials.  The plate vulcanizing press equippedwith a programmable LCD, which can set pressure, temperature, time, exhaustingfrequency and the number of seconds with human-machine interface operatingsystem.  Parameters:  Capacity  50/80/100/150T (optional)  Temperature range  Normal temperature ~ 300 ℃  Pressing plate size    300 X 300/350 X 350/400 X 400/450 X 450/500 X 500/  550 X 550 mm  Distance of pressing plate  100 mm  Exhausting frequency  0 ~ 10 times can be set  Oil pressure medium  Mobil 32# antfreeze hydraulic oil  Power supply  3 ∮, five lines Specification: 1.Controller: PLC programmable color touch screen has human-machine interface.All the operating parameter can be set and controlled at will.Mould pressuring process and vulcanization curve can bedisplayed dynamically.2.Heating method: Electro-thermal tube 3.Cooling method: Tap water cooling 4.Working layer: Two layers. The upper die plate heating,the lower die plate cooling.5.Oil pressure system: The closed-loop control system of proportionhydraulic flow valve with the functions of     automatic compensation and timedelay stopping
