Single Point Lubricators

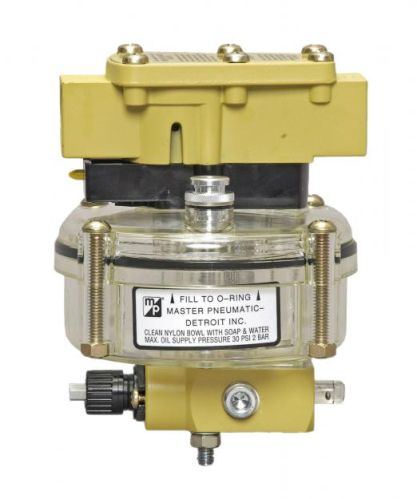

SERV-OIL SINGLE POINT UPSTREAM LUBRICATOR:The single-point lubricator (SPL) is specifically designed to lubricate air tools. It cannot be used for general lubrication of components other than air tools. An SPL is installed in the air supply line upstream of the air tool. When the tool is cycled the SPL injects a precise amount of oil at the air inlet of the tool. Both the amount of oil and the frequency of injection are adjustable.
Flow Valve: The air suppy line is connected to the inlet of the flow valve. 18-Inch nylon tubing is connected to the nozzle in the outlet port, then runs inside the air line to within a short distance of the air tool.(Note: A check valve must be installed on the end of the 18 nylon tube.) When the air tool is at rest, no air flows in the valve. When the tool is triggered the differential pressure across the sensing disk opens a passage to the pulse counter.
Pulse Counter: When the air tool is triggered the pulse counter receives an air signal from the flow valve. A three position switch on counter is set to allow air signal to proceed to the Servo-Meter on every cycle, every 5th cycle or every 10th cycle. This is one of the means of controlling the amount of lubrication that will be supplied to the air tool.
Servo-Meter: The servo-meter is an air-actuated, positive displacement oil pump. It injects oil with each signal from the pulse counter. To actuate the servo-meter the signal received must have a pressure of at least 60 psig (4 bar). When actuated a precise amount of oil is delivered to nozzle in the outlet port of the flow valve, and is then carried by a nylon line to the air tool. A transparent sight indicator on one end of Servo-Meter gives visual verification of oil delivery.
Adjusting Knob: By means of the adjusting knob on the end of the Servo-Meter, oil delivery can be reduced in precise increments from the maximum rating down to 10% of the maximum rating (30% for 2 drop units).
