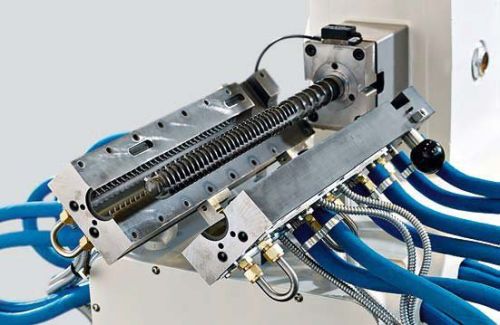

Single Screw Reciprocating Extruder (PCS 30) - Industrial Application

Being an extraordinary figure in the industry, we offer a broad range of Single Screw Reciprocating Extruder (PCS 30) to our customers. This versatile and compact small scale extruder is used for customers sampling, research and development and color shade matching. Its scale up capabilities offer top notch efficiency and flexibility. It is easy to use, economical and user-friendly. At reasonable rates, we provide it in safe packaging.

Details

• The Clarion make laboratory Kneader PCS 30 is a versatile, compact small scale compounding
• extruder for research and development, color / shade matching and customer sampling.
• This easy,economical, user-friendly laboratory kneader offers similar process characteristics as production scale PCS series machines.
• Samples from 300gms up to 40 kg/h. Based on its process scale-up capabilities it qualifies as a universal laboratory compounder offering a high grade of efficiency and flexibility.

Standard Features and Advantages :

• Representative data from laboratory samples
• Throughput rates up to 20 - 40 kg/h
• Standard Split barrel design for easy access and cleaning, easy maintenance
• Fine temperature control with independent heating Cooling Zones
• Standard segmented screw, Liners for easy replacement of wear parts
• Variable screw speed to match desired properties
• Optional - Feed Screw with hopper can be installed for small batches
• Optional – Cooling Roller with belt for the small batch production.

Detailed List of Basic Components

• Inlet hopper
• Complete barrel assembly with Screw Elements & Liners set fitted on barrel
• Discharge die with cooled chute
• Gearbox with Motor drive
• Main Drive Motor
• Operator panel with all standard accessories
• Volumetric Feeder Assembly (Optional)
• Chill Rolls (Optional)
• Base Table with Heat Cool Unit
• Leveling Screws
