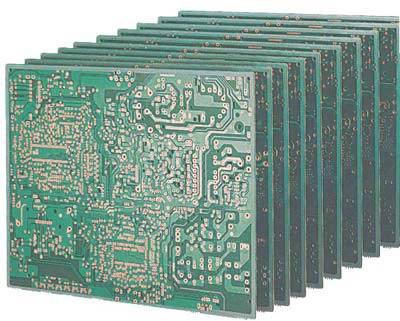

single sided printed circuit board manufactured by us finds wide usage in several sectors. Known for optimum designing efficiency, the single sided pcb is made by us in accordance with the set industrial standards. Leveraging on strong infrastructure and access to latest technologies, we can offer single sided printed circuit boards in bulk as per the requirements of the clients. Single sided printed circuit boards offered by us are tested stringently under expert supervision. production capacity -:
| Types of Laminates | FR-1, FR-2,CEM-1, CEM-3, FR 4, PTFE |
|---|---|
| Laminate Thickness | 0.2mm, 0.4mm, 0.80mm, 1.00mm, 1.20mm, 1.60mm |
| Cu Foil Thickness | 17.5 micron, 35 micron, 70 micron, 105 micron |
| Minimum Track Width | 0.15mm (6mil) for 35 micron Cu , 0.20mm (8mil) for 70 micron Cu |
| Minimum Spacing between the Tracks and Pads | 0.15mm(6mil) |
| Maximum PCB Size | 610mm X 500mm |
| Minimum Hole Size (Punching) | 0.7mm |
| Minimum Hole Size (CNC Drilling) | 0.4mm |
| Surface Finishing | Lacquer, Organic surface protective (OSP) , HAL, (Lead free/Tin Lead) ,Immersion Tin |
| Hole/Outer Profile | 100% Punching & Blanking, CNC Drilling & Routing |
| Specification. Standards | PC-A-600, IPC-SM-840, IPC-RB-276, IPC-TM-650. MIL 55110P, MIL P13949G |
Nature of Business
Manufacturer / Exporter / Supplier / Retailer
Number of Employees
650 - 700
Year of Establishment
1986
