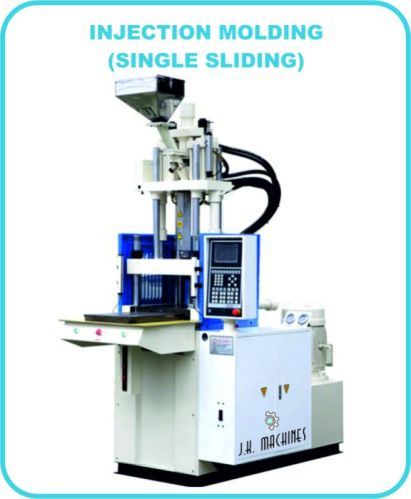

Single Slide Vertical Injection Molding Machine

Single Slide Vertical Injection Molding Machine

Listing ID #6977145

Get Latest Price
  • MOQ 1 Piece
  • Country of OriginIndia
  • Brand NameJ. K. Machines
  • Machine Weight760kg
  • Max. Hydraulic Pressure140kg/cm2
  • Supply Type Exporter, Supplier
Preferred Buyer From : All over the world
View More Details
Send Enquiry

Company Information

J.K.MACHINES verified-icon
Mangolpuri, Delhi
View Number
  • Member Since 14 Years
  • Nature of Business Manufacturer
  • GST No. 07CNCPS2029A1ZF

Ask for more detail from the seller

Contact Supplier
View Company Details

Product Details no_img_icon

  • Country of Origin India
  • Brand Name J. K. Machines
  • Machine Weight 760kg
  • Machine Dimension 1300 x 800 x 2300mm
  • Total Wattage 5.10kw
  • Max. Hydraulic Pressure 140kg/cm2
  • Pump Output 80L

Salient Features

  • Micro processor based Techmation / Porcheson controller.
  • Nitrided steel screw & barrel directly driven by high torque hyd. motor
  • Multi stage speed pressure & position for injection & clamping
  • Screw cold start prevention
  • Close loop barrel temperature control
  • Molding condition monitoring with alarm
  • Low pressure mold protection device
  • Hydraulic RAM type clamping system
  • Safety sensor for machine & operator safety
  • Automatic purge system
  • Emergency stop
  • Proportional pressure & flow control valves
  • Barrel cover
  • Set of easy damage parts
  • Level Pads / Tool kit set
  • Steel Hopper


Technical Specification

Specification Unit ST-160 ST-200 ST-400 ST-550 ST-700 ST-900 ST-1200 ST-1600
Screw Diameter mm 22 25 28 32 32 36 32 36 36 42 36 42 45 50 50 55
Injection Pressure kg/cm2 1627 1260 1446 1107 1659 1311 1659 1311 1722 1265 1722 1265 1572 1275 1855 1533
Theoretical Shot Volume cm3 40 52 68 88 96 122 96 122 183 249 183 249 286 352 431 522
Max. Shot Weight g/oz 13179 46/1.60 22322 79/2.70 86/3.00 109/3.80 86/3.00 109/3.80 164/5.70 224/7.80 164/5.70 224/7.80 25/9.00 316/11 387/13.5 470/16.4
Injection Rate cm3/sec 36 46 50 65 57 73 57 73 91 124 91 124 150 185 159 193
Temperature Control zone 2 3 3 3 4 4 4 4
Material Hopper Capacity L 15 15 15 15 30 30 60 60
Clamping Force T 16 20 40 55 70 90 120 160
Opening Force T 6.3 5 4 5 11 16 19 16.5
Distance Between Tie Bars mm 280 x 145 355 x 225 415 x 255 490 x 300 500 x 340 560 x 410 660 x 510 660 x 630
Min. Mold Height mm 120 100 (150 Optional) 150 (200 Optional) 150 (200 Optional) 200 (250 Optional) 200 (250 Optional) 250 (300 Optional) 300 (350 Optional)
Opening Stroke mm 160 180 200 200 250 270 300 300
Max. Open Daylight mm 280 280 (330 Optional) 350 (400 Optional) 350 (400 Optional) 450 (500 Optional) 470 (520 Optional) 550 (600 Optional) 600 (650 Optional)
Ejector Force T 1.3 1.3 1.3 1.3 2.7 2.7 3.9 5.4
Ejector Stroke mm 40 40 50 50 60 60 75 95
Max. Hydraulic Pressure kg/cm2 140 140 140 140 140 140 140 140
Pump Output L 80 130 180 180 200 250 350 400
Pump Motor Power kw 3 4 5.5 5.5 11 11 15 18.5
Barrel Heating Power kw 2.1 2.7 3.6 3.6 4.5 4.5 7.7 10.5
Total Wattage kw 5.1 6.7 9.1 9.1 15.5 15.5 22.7 29
Machine Weight kg 760 1200 1700 1900 3000 4200 5800 7300
Machine Dimension mm 1300 x 800 x 2300 1400 x 900 x 2400 1800 x 1000 x 2400 1800 x 1000 x 2400 2000 x 1200 x 3100 2200 x 1300 x 3100 2600 x 1100 x 3600 2700 x 1200 x 3800
