We are highly acclaimed in the industry for manufacturing an optimum quality range of Single Spindle Lathe Machine.
Product Detail :

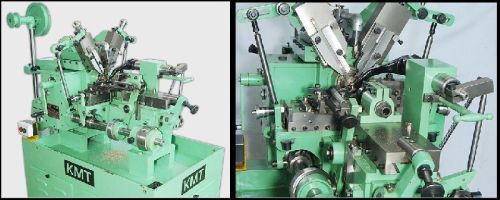

The 'KMT' make Single spindle automatic lathes are extremely versatile machines that give big returns on small investments. Up to 80% of all turning jobs can be performed by these machines with accuracy and precision. The KMT Proves proved economical for mass production of simple and complex turned parts for Automobiles, Bicycles, Tractors, Diesel engines, Sewing machines and Business machines, Aircraft and so on. The simple design of these automates greatly reduces the time for change-over of tooling set-up from one components to another.
Features :| SPECIFICATIONS | ||
| Model no. | KMT-60 | KMT -70 |
| Max capacity Round Bar | 60 mm | 70 mm |
| Hexagonal | 52 mm AF | 60 mm Af |
| Square | 42mm | 48 mm |
| Max Turning Length with Long Turning Attachment | 65 ......... |
65 ........... |
| Maximum Drill Length | 75 mm | 75 mm |
| Motor for Spindle Drive | 5 HP | 7.5 HP |
| 3 Phase | 960 RPM | 960 RPM |
| Motor for Fee Drive | 5 HP | 1 HP |
| 3 Phase | 960 RPM | 960 RPM |
