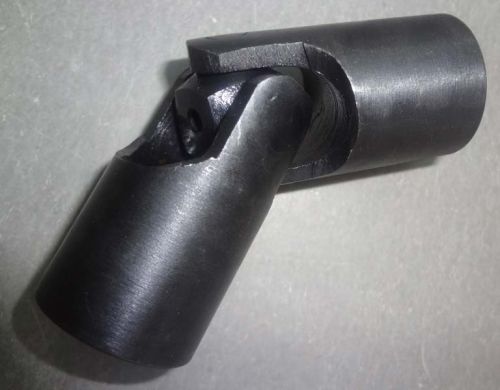

Engimech Single Universal Joint, Technics : Machining

₹ 350 / Piece

MOQ10 Piece(s)
Brand NameEngimech
TechnicsMachining
Supply TypeManufacturer, Exporter
Preferred Buyer Location All over the world

Single Universal Joints, manufactured as per your specifications or drawing. Specifications of Single Universal Joint is as follows : Normal Size (in Inches) Single Universal ....

Company Information

4.5/5

Member Since 14 Years
Nature of Business Manufacturer
GST No. 24AKXPP2583N1Z7

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Single Universal Joints, manufactured as per your specifications or drawing.

Specifications of Single Universal Joint is as follows : Normal Size (in Inches)

Single Universal Joint – 3/8”
Single Universal Joint – 1/2”
Single Universal Joint – 5/8”
Single Universal Joint – 3/4”
Single Universal Joint – 7/8”
Single Universal Joint – 1”
Single Universal Joint – 1-1/8”
Single Universal Joint – 1-1/4”
Single Universal Joint – 1-1/2”
Single Universal Joint – 1-3/4”
Single Universal Joint – 2”

Figure Of Single Universal Joint

Download Detail File : Click Here

Technical Specifications

Normal Size (in Inches)	D (in mm)	L 1 (in mm)	L 3 (in mm)	Maximum Operating Torque (in Nm)
Single Universal Joint – 3/8”	9.39	44.5	17.2	2.3
Single Universal Joint – 1/2”	12.57	50.8	19.1	7.9
Single Universal Joint – 5/8”	15.75	57.2	20.6	15.2
Single Universal Joint – 3/4”	18.93	68.3	24.1	28.2
Single Universal Joint – 7/8”	22.1	76.2	26.2	39.5
Single Universal Joint – 1”	25.27	85.7	30.2	50.8
Single Universal Joint – 1-1/8”	28.45	88.9	31	73.4
Single Universal Joint – 1-1/4”	31.62	95.3	31.8	117.9
Single Universal Joint – 1-1/2”	37.97	108	35.7	225.9
Single Universal Joint – 1-3/4”	44.32	127	40.6	327.4
Single Universal Joint – 2”	50.67	139.7	43.2	485.5
Material : Body & Square Joint – AISI 1045 or Alloy Steel, Pin – Special Copper Alloy with Harden processed & Black Oxide
Standard Operating Angle 35^o- For higher operational angel it can be made upon request
