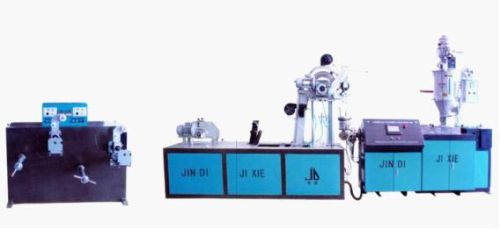

Single Wing Labyrinth Drip Irrigation Belt Production Line

We are offering single wing labyrinth drip irrigation belt production line
usage:
single wing labyrinth drip irrigation belt production line is specialized in producing plastic irrigation belt, the drip irrigation belt is widely used in water saving and irrigation of agriculture field (cotton, grapery, peanut and wheat etc), greenhouse, garden, mountain and hill region.
main components:
no machine model quantity
1 single-screw extruder sj50 1
2 die head and net changing device 1
3 forming wheel î¦382 1
4 diameter measuring instrument 1
5 traction machine 1
6 winding machine 1
7 vacuum on the feeder 1
8 drying hopper 1
9 electric control cabinet 1
details:
single - screw extruder
model: sj-50
diameter of screw: 50mm
rotating speed of screw: 100rpm
motor power: 15kw
barrel heating power: 12kw
barrel heating way: use casting aluminum heater
max. Extruding capacity: 50kg/h
central height of extruder: 800mm
weight� 2500kg
main motor control method: frequency converter
temperature control method: pid
material of screw and barrel: 38crmoaia, nitriding depth is 0.4-0.7mm,
�� hardness�700hav
driving way: hard tooth-faced speed reducer
die head and net changing device
shape of die head: spiral
characteristic of die head: hard chromium plating after polishing in inner runner
die head heating way: stainless steel mica heating circle
heating power: 5kw
filter changing way: durable filter
forming wheel
material: stainless steel
diameter: î¦382 /î¦478
dripper distance: 10-50cm
flow rate: 1.0-4.0l/h
vacuum bump power: 1.5kw
driving motor power: 0.75kw
driving motor control method: frequency converter control
4. calibrating instrument
working voltage: 220v
measurement accuracy: 0.1mm
traction machine
traction way: three roller
driving motor power: 0.55kw
driving motor control method: frequency converter control
����������������
6. winding machine
coiling way: double-station rolling method
coiling control: torque motor
torque motor power: ylj100-5-8
length control method: photoelectric swift
vacuum feeder : it is controlled by computer and easy to operate.
drying hopper
capacity: 25kg
heating power: 2.7kw
fan power: 135kw
max temperature: 135â°
electric control cabinet
frequency converter of main motor: 15kw (holip)
frequency converter of forming wheel: 1.5kw ( holip)
frequency converter of traction machine: 1.5kw (holip)
brand of temperature control instrument: yatai(shanghai)
brand of contactor: delixi
brand of air swift: delixi
brand of other electric parts: delixi
