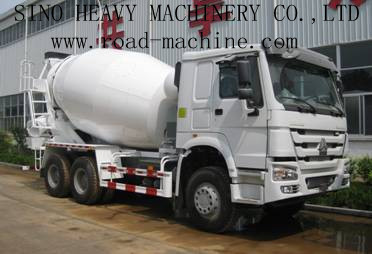

Contact SupplierWe are offering sinotruk howo concrete mixer truck 8cbm 6x4.
main description
overall dimensions:8840mm*2495mm*3850mm(l*w*h)
tare weight:11860kg
payload:20000k
front overhang:1500mm
rear overhang:2365mm
wheelbase3625mm+1350mm
track (fr):2022mm1830mm
chassis brand:sinotruk howo
chassis model:zz1257m3641w, driving type 6x4
cab:hw76, left hand drive, air-conditioner, one sleeper
engine:sinotruk wd615.87, 290hp, euro ii emission standard
transmission:hw15710, no. Of speeds: 10 forward & 2 reverse
steering:german zf8098, turning system pressure 18mpa
rear axle:hc16 tandem axle, rated load 2x16ton, ratio 5.73
wheels and tires
rim 8.5-20; tire 12.00r20, 10 units; spare wheel carrier: with one spare wheel
brakes
service brake: dual circuit pneumatic brake; parking brake: spring energy, compressed air operating on rear wheels; auxiliary brake: engine exhaust brake
mixing volume:8cbm
water tank volume:440l
hydraulic pump
brand: ark, italy
motor
brand: ark, italy
speed reducer
brand: topunion, italy
