Sintered Wire Mesh

Anping tenglu metal wire mesh co.ltd
sintered wire mesh

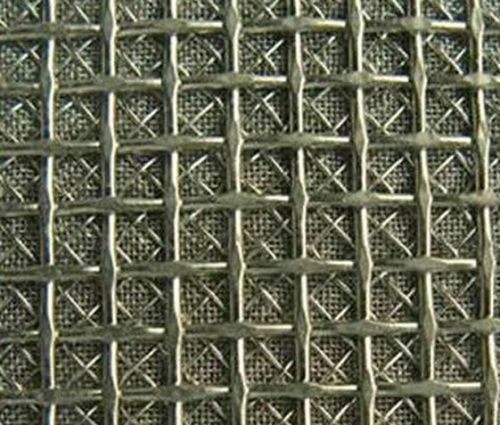

this sintered wire mesh is made from several layers of square woven. As the high porosity of the square woven ,this kind of sintered wire mesh has the characters of good permeability,low resistance and high circulation. Mainly used in filtration of gas and liquid.beause of the wide selectivity of the support layer,the construction can be produced according to customer's requirement.
Material: standard material is sus316(aisi316),sus316l(aisi316l).
Size: standard size are 500×1000mm,600×1200mm, other sizes in the above-mentioned range are also available according to customer's needs.
Large areas , from 1micron to 100micron it all has the well filtration performance .
Steady filter rating, as to the two protective layers and sinter arts, the mesh of the filter layer is not easy to change.
High mechanical strength. Excellent resistance to pressure ang high mechanical strength due to the fourth and fifth layers reinforced.
Washability.easy to wash, especially back washing owing to the surface.
Heat resistance. Heat resistant up to 480℃.
Corrosion resistance. Corrosion resistance as to a result of adopting sus316l.
Tractability.suit to cut, punching, warp, tension and jointing.
Material: standard material is sus316l (aisi316l).
Size: standard size are 500×1000mm,600×1200mm, other sizes in the above-mentioned range are also available according to customer's needs
