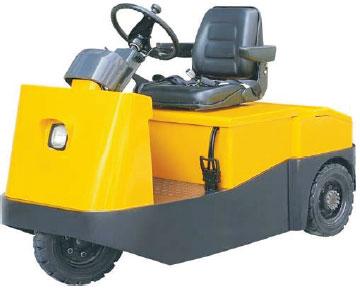

Sit On Electric Tow Trucks

₹ 6.85 Lakh / Units

MaterialMetal
ResistivityRust Resistant
ApplicationIndustrial
ResistivityRust Resistant
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Company Information

5.0/5

Member Since 13 Years
Nature of Business Manufacturer
GST No. 33AGTPA0639E1ZQ

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

MaterialMetal
ResistivityRust Resistant
ResistivityRust Resistant
ApplicationIndustrial
DurabilityLong Life
Surface FinishingPolished
DurabilityLong Life

We offer superior quality Sit on Electric Tow Trucks. These Sit on Electric Tow Trucks are known for outstanding performance. We can cater bulk requirements for Sit on Electric Tow Trucks. These Sit on Electric Tow Trucks are available with us in various models.
Advantages

Safety and stability Multi-function display:battery state, hour meter, fault indicator etc
The application of hand brake and hydraulic brake improve the safety level of truck
Stepless speed control
Equipeed with adjustable steering wheel, adapted to different operators
Advance linking system is designed with orienting and fixing bracket to the trailer
Low Noise

Structral

"H" type axle design gives a good stability
Batteries located in the lowest part of frame ensures tow tractor excellent stability because of low centre of gravity
Automatic reset make operation easier

Serviceability

Canbus technology reduces wiring complexity and increase reliability
The back cover is easy to open for amintenance and replacement of parts such as drive wheel, oil tube, accelerator controller etc

Option

Cabin
Double front lamp

Specifications

Model	Unit	ATT-20C	ATT-30C	ATT-50C
Drive type		Electric	Electric	Electric
Operation type		Seat	Seat	Seat
Rated traction weight(60 minutes rated)	Kg	2000	3000	5000
Rated traction(60 minutes rated)	N/kg	500/50	750/75	1250/125
Max. traction(5 minuts sated)	N/kg	2000/200	3000/300	5000/500
Draw bar center height	h1/h2(mm)	280/350	280/350	280/350
Weight	kg	930	980	1160
Axle loading, front	kg	330	350	410
Axle loading, rear	kg	600	630	750
Tyre number front/rear	X=Driven Wheels	1/2X	1/2X	1/2X
Tyre size,front	Solid Rubber	15x4.5-8	15x4.5-8	15x4.5-8
Tyre size,rear	Solid Rubber	15x4.5-8	15x4.5-8	15x4.5-8
Wheelbase	L1(mm)	1170	1170	1280
Rear hanging distance	L2(mm)	350	350	450
Tread, front	W2(mm)	0	0	0
Tread, front	w1(mm)	860	860	946
Overall length	L(mm)	1720	1720	1940
Overall width	w(mm)	970	970	1100
Overall height	h(mm)	1250	1250	1250
Approach angle	Deg.	45	45	45
Departure angle	Deg.	40	40	40
Min. ground height	X(mm)	100	100	100
Min. turning radius	Wa(mm)	1390	1390	1650
Travel speed, laden	km/h	8	7	8
Travel speed, unladen	km/h	13	13	14
Max.gradeability,laden	%	6	6	6
Max.gradeability,unladen	%	15	15	15
Brake		Hydraulic	Hydraulic	Hydraulic
Driving motor power	kw	3	3	5
Voltage	V	48	48	48
Battery Capacity	Ah	240	270	360
Battery weight	kg	350	400	530
Travel control		Mosfet	Mosfet	Mosfet
Average noise	Db(A)	68	68	68
Traction bolt		Traction Bolt	Traction Bolt	Traction Bolt
