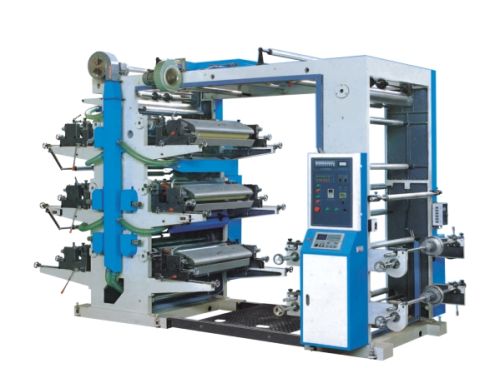

Six Color Plastic Bag Printing Machine

Six Color flexographic printing machine can print on double face 6+0, 5+1. 4+2, 3+3.   Performance and Features: 1. Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.2.360°continuous and adjustable longitudinal register device.3. The frequency control of motor speed adapts to different printing speeds.4. There are JoggingStopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed. Model of Machine YT-4600 YT-4800 YT-41000 YT-41200 Max. Width of Printing Material 600mm 800mm 1000mm 1200mm Max. Printing With 580mm 780mm 980mm 1180mm Length Range of Printed Product 190-960mm 190-960mm 190-960mm 190-960mm Max. Diameter of Roll Material ф450mm ф450mm ф450mm ф450mm Printing Speed 50mmin 50mmin 50mmin 50mmin Thickness of plate(Including Two-sides Glue Paper) 2.38mm 2.38mm 2.38mm 2.38mm Total Power 12.2kw 16.2Kw 19.25Kw 23.55 Weight of Machine 3000kg 3500 kg 4000 kg 4200kg Overall Dimensions(mm) 4200*1600*240 4200*1800*2400 4200*2000*2400 4200*2200*2400.
