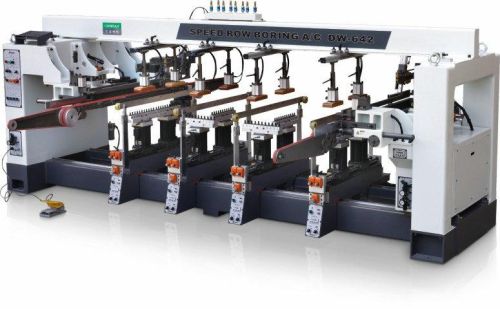

Six Row Boring Drilling Machine

MOQ1 Set(s)
3 ROW drilling boring machine4 ROW drilling boring machine
6 ROW drilling boring machine9 ROW drilling boring machine
Supply TypeManufacturer
Preferred Buyer Location All over the world

We are offering six row boring drilling machine. 1，drilling direction: horizontal or downward vertical; 2，number of drill rows: 6; 3，automatic feeding; 4，travel of drilling seat displayed....

View More Details

Send Enquiry

Product Details

We are offering six row boring drilling machine.
1，drilling direction: horizontal or downward vertical;
2，number of drill rows: 6;
3，automatic feeding;
4，travel of drilling seat displayed with german siko led accurately and reliably;
5，location and feeding pusher in automatic feeding system;
6，german heavy-duty design;
max. Processing width 2450mm
min. Processing width 280mm
max. Gap between holes of horizontal drills 640mm
min. Gap between vertical drills 128mm
distance between drill spindles (center distance) 32mm
number of vertical drills (11+11)x 4
number of horizontal drills
21x 2
speed of drill spindle
2800(50hz)、3400(60hz)
power of vertical spindle 1.1kw
power of horizontal spindle
1.5kw
feeding speed 60m/min
distance between worktable and the ground 900mm.
