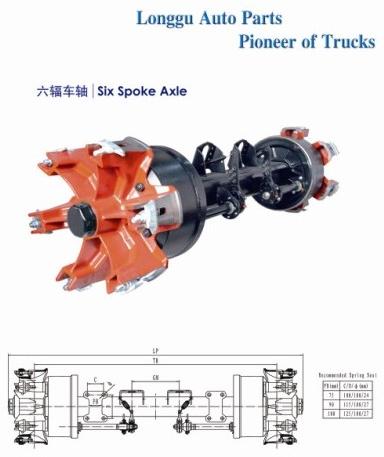

Contact SupplierWe are offering six spoke axle technical date (special requst availbale)
axle type 105kmh rate load (kg) "s" cam brake series∮ *width(mm) trake tr(mm) spring seat installation lm (mm) axle tube(mm) center distance of brake chammer gm(mm) wheel fixing total length (mm) weight (kg)
stus recommended wheel
lg12lf-24 12,000 420*200 1820 ≤455 □150 356 6-m20*2 iso 8.5-24 2130 405
lg14lf-24 14,000 420*200 1840 ≤455 □150 357 6-m20*2 iso 8.5-24 2165 440
lg16lf-24 16,000 420*200 1850 ≤455 □150 372 6-m20*2 iso 8.5-24 2255 470
lg16lf-20 16,000 420*200 1850 ≤455 □150 372 6-m20*2 iso 8.5-20 2255 445.
