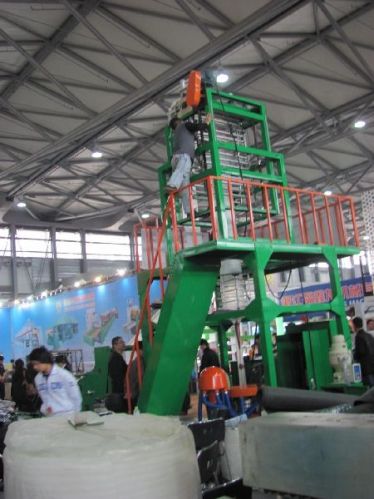

SJ-65 Film Blowing Machine

Its extruder, cylinder and screw rods are made of quality alloy steel that have been nitrized and processed in a precision way. Hence it is sound in hardness, durable in corrosion resistance. The specially-designed screw is of sound quality in plasticizing, which helps increase the production capacity. It is applied to blowing the plastic films like low density polytene (LDPE), high density polytene(HDPE) and linear low density polytene (LLDPE). It is widely applied to producing the packing bags for foodstuff, clothing, rubbish bag and vest ones. Any special requirement, please feel free to contact us. Technical variables: Model SJ-B50 SJ-B55 SJ-B65 SJ-B651 Screw Diameter 50mm 55mm 60mm 65mm Screw Ratio(LD) 28:1 28:1 28:1 28:1 Screw Speed 10-100rmin 10-100rmin 10-100rmin 10-100rmin Power of Main Motor  Max Output 11Kw 35kgh 15Kw 50kgh 18.5-22Kw  65kgh 22Kw 80kgh Max.Folding Width of Film 600mm 800mm 1000mm 1200mm Single-sided Thickness of Film 0.01-0.10mm 0.01-0.10mm 0.01-0.10mm 0.01-0.10mm Total Power 22Kw 26Kw 30Kw 36Kw Weight of Machine 2T 2.5T 3T 3.2T Overall Dimensions 4000 x 1800 x 3600mm 4200 x 2000 x 4000mm 4600 x 2300 x 4200mm 4800 x 2500 x 4500mm
