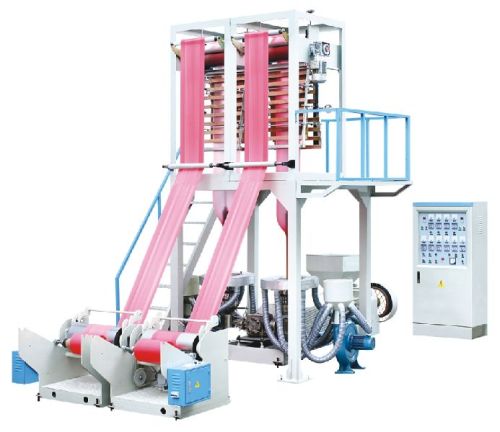

SJ65-FM600 Double-head Film Blowing Machine

The double head film blowing machine is scientifically designed, with two die head but one extruder (one screw and cylinder). This kind of machine has the advantage of higher production capacity, saving energy, labor cost and factory space. You can choose the machine with rotary die, back-to-back winder, and lifting equipment. Embossing roller, and gusset device is also available if you need it.  Model 45*2 50*2 55*2 Screw diameter 45mm*2 50mm*2 55mm*2 Width of film (mm) 100-600 200-800 300-1000 Single layer thickness(mm) 0.01-0.10 0.01*0.10 0.01-0.10 Max output (kgh) 35 50 65 LD 26:1 26:1 26:1 Main motor power (kw) 15 18.5 22 Traction motor power (kw) 1.1 1.1 1.5 Heating power (kw) 15 18 25 Dimension(mm) 4800*1900*4100 5500*2100*4700 6500*2300*4900 Machine weight 2T 2.5T 3T
