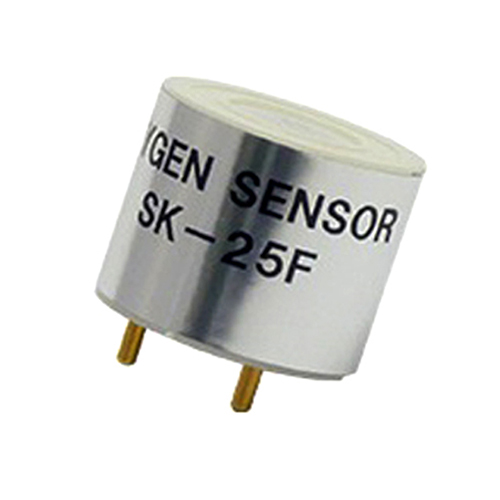

SK-25F Figaro Oxygen Sensor

Figaro oxygen sensor sk-25f
features:
* virtually no influence from co2, co, h2s, no, h2
* temperature compensation circuit included
* good linearity
* no position dependency
* stable output signal
* no external power supply required for sensor operation
* no warmup time is required
applications:
* safety - air conditioners, oxygen detectors, fire detectors, fuel cell systems
* measurement - oxygen monitors in flue gas
* biotechnology - oxygen incubators, anaerobic cultivators
* food industry - refrigeration, greenhouses
the figaro oxygen sensor sk-25f is a unique galvanic cell type oxygen sensor. Its most notable features are no influence from co2, good linearity up to 30% oxygen, and excellent chemical durability. This feature makes the sensor ideal for oxygen monitoring in various applications such as the biochemical field, food industry, and domestic safety applications.
Specification:
measurement range: 0~30% o2
accuracy: ±1% full scale
operating conditions
atmospheric pressure: 1013hpa ± 20%
temperature: -10~50℃
relative humidity: 0~99%rh (no condensation)
response time (90%): ≤ 15 seconds
initial output voltage under factory test conditions: 5.5~8.5mv
fcatory test conditions
atmospheric pressure: 1013hpa
temperature: 25±5℃
life expectancy at 20℃ in normal air: approx. 3 years
