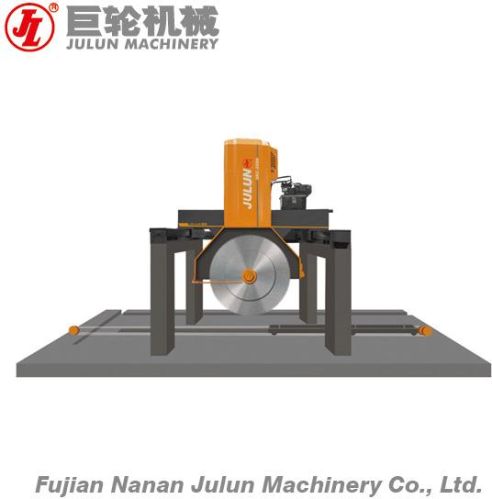

SKC-2000 Julun Granite Marble Block Cutting Machine Price

Skc-2000 frame type granite block cutting machine combines high production of single arm multi-blades cutting machine and high precision of bridge block cutting machine, using large-span of four post guide column structure, with high rigidity, high cutting efficiency, greatly improved blade life and lower power consumption; meanwhile guide column using oil lubrication, with better lubrication, more convenient maintenance; the guide sleeve with multi-layer seals , which prevent water, dust and oil spilling, improve the using life of the machine; forward-backward slicing uses high-precision screw nut driving, automatic slicing, main parts adopt imported good- quality materials; double worktable can put double blocks, with high cutting efficiency; the machine with compact structure, easy operation, especially suitable for cutting domestic granite blocks.
technical data
skc-2000 frame type granite block cutting machine
appellation unit skc-2000
max.blade diameter mm φ2000
max.blade number p 30
length of shaft mm 950
diameter of spacer mm φ350*20*φ150
max.lifting stroke mm 1000
forward-backward stroke mm 2350
max processing size(l*w*h) mm 4000*1600*800
water consumption m3h 45
power of main motor(optional) kw 132160
total power kw 140168
dimension(l×w×h) mm 3900×4500×2900
weight kg 16000
