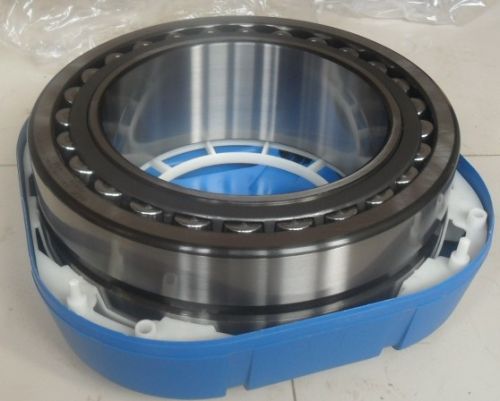

Skf 22226 Ek + H 3126 Bearing and Adapter Sleeve

We are offering skf 22226 ek + h 3126 bearing and adapter sleeve. Skf spherical roller bearings with a cylindrical bore can be mounted on the shaft smoothly, while the tapered bore should be mounted on smooth or stepped shafts using adapter sleeve or withdrawal sleeve. The sleeve h 3126 can facilitate bearing 22226ek mounting and discounting and simplify the bearing arrangement design.
let’s check the technical datasheet for skf bearing 22226ek,
type: spherical roller bearings, on an adapter sleeve
dimension: 115mm x 230mm x 64mm
basic dynamic load rating: 735 kn
basic static load rating: 930 kn
fatigue load limit: 88 kn
reference speed: 2600 rmin
limiting speed: 3600 rmin
weight: 14 kgs
adapter sleeve: h 3126
origin: made in sweden
contact: sales(at)hzskf.cn
more part no. Of skf spherical roller bearings with sleeves,
22314 ek + h 2314 23232 cckw33 + h 2332
22215 ek + h 315 22332 cckw33 + h 2332
21315 ek + h 315 23034 cckw33 + h 3034
22315 ek + h 2315 23134 cckw33 + h 3134
22216 ek + h 316 22234 cckw33 + h 3134
21316 ek + h 316 23234 cckw33 + h 2334
22316 ek + h 2316 22334 cckw33 + h 2334
22217 ek + h 317 23936 cckw33 + h 3936
21317 ek + h 317 23036 cckw33 + h 3036
22317 ek + h 2317 23136 cckw33 + h 3136
22218 ek + h 318 22236 cckw33 + h 3136
23218 cckw33 + h 2318 23236 cckw33 + h 2336
21318 ek + h 318 22336 cckw33 + h 2336
22318 ek + h 2318 23938 cckw33 + h 3938
22219 ek + h 319 23038 cckw33 + h 3038
21319 ek + h 319 23138 cckw33 + h 3138
22319 ek + h 2319 22238 cckw33 + h 3138
23120 cckw33 + h 3120 23238 cckw33 + h 2338
22220 ek + h 320 22338 cckw33 + h 2338
23220 cckw33 + h 2320 23940 cckw33 + h 3940
21320 ek + h 320 23040 cckw33 + h 3040
22320 ek + h 2320 23140 cckw33 + h 3140
23022 cckw33 + h 322 22240 cckw33 + h 3140
